Extended Description

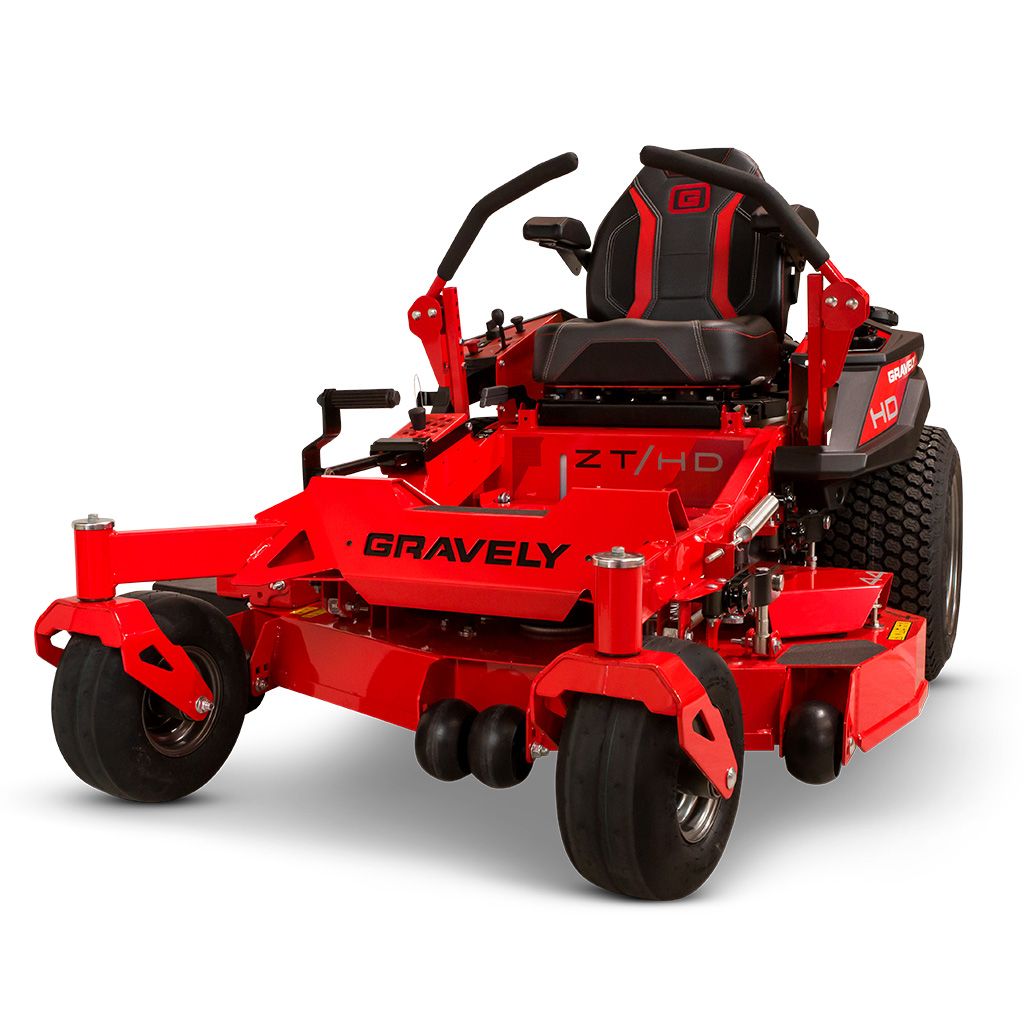

• Description: GRAVELY ZT HD, 44" Cut fitted with a Kawasaki FR651V, 21.5 hp Engine
• Editorial: EXPECTATIONS ELEVATED. More style, more comfort, more speed, and more precision have made the ZT HD one of the top selling machines in its class. It was built to commercial standards for power and durability. The only thing that makes it a residential mower is its address.
• Features: A premium quality Kawasaki FR651 V- Twin engine.
• Hydro Gear ZT-3100 Dual hydrostatic transmission.
• Seat Isolation Removes vibrations to decrease fatigue by absorbing the rough terrain so your body doesn’t have to.
• Cut selection Offers 15 cutting positions, ranging from 1.5 inches to 5 inches, to make your lawn look its best.
• Foot-Operated Deck Lift
• X-FACTOR® 3 DECK The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
• Fully welded tubular frame, The ZT HD offers a superior and more robust welded tubular frame, giving you the integrity of a commercial frame in a residential package.
• Productivity- 3.6 acres per hour.
• Warranty: Residential / Domestic Use Limited Warranty: 4 Years / 500 Hours - whichever comes first - to the original purchaser only.
• Engine Only: 3 Years (See engine manufacturer's warranty for details).
• Commercial Use Limited Warranty: 4 Years / 500 Hours - whichever comes first - to the original purchaser only.
• Rental Application: 90 Days
• Please Note: For further details on our warranty terms and conditions including all limitations and exclusions please refer to the warranty section on our web site or contact our friendly sales team.
• Engine: Kawasaki FR651V
• HP: 21.5 hp, 726 cc (16kW) at 3,600 RPM as per SAE J1995
• Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine.
• Starter: 12-volt
• Ignition: Electronic
• Charging System: 12-volt (see engine manufacturers specifications)
• Oil Filter: Spin-on engine oil filter / Total oil capacity 2.1 U.S. qt. (2.0 litres) with filter
• Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
• Fuel Capacity: 18.8 Litres
• Fuel Filter: Replaceable, automotive-type
• Air Filter: Single-stage cartridge air filter
• Cooling: Air cooled flywheel fan
• Governor: Mechanical
• PTO Clutch: Warner Electric PTO Clutch
• Drive System: Dual hydrostatic.
• Hydrostatic Drive: V-belt drive from engine crankshaft
• Pumps: Hydro Gear ZT-3100
• Drive Cooling: Transmission mounted fans
• Ground Speed - Forward: Infinitely variable 0-12.8 kph
• Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
• Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
• Brakes: Hand brake.
• Caster Tyres: 13 x 6.5 x 6
• Tyres - Drive: 22 x 10 x 12
• Weight: 365.14 kg
• Safety Features: Operator presence system connected to clutch, seat, and park brakes
• Seat: HIGH BACK COMFORT W/ SEAT ISOLATION & PADDED ARM RESTS
• Construction: Frame 1" x 3" STEEL Tubular frame welded
• ROPS: *ROPS not supplied with unit*
• Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
• Cup Holder: Yes
• Height: 47" (1193.8 mm)
• Overall Length: 79" (2006.6 mm)
• Width: 47.6" (1209.04 mm) With chute up
• Cutting Widths: 44" (1117.6 mm) cut side discharge.
• Deck Lift: Foot-operated
• Deck Construction: Fabricated 7- Gauge
• Cutting Height(s): 1.5" - 5" (38.1 mm - 127 mm)
• Blade(s): 3 x Bar blades
• Blade Tip Speed: 18,576 FPM
• Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life.
• Spindles: Forged Aluminium with sealed ball bearings
• Discharge Chute: High density, rubberised.
• Width of Cut: 44" (1220 mm)
• Optional Accessories: Optional accessories available for purchase separately include:
• AGA791095 Kit, mulch blades included 44".
• AGA791085 Trailer Hitch
• AGA791086 LED Head light kit
• AGA891011 Folding ROPS kit
• AGA792180 Sunshade Hard Top ROPS Mounted (Requires ROPS to be mounted)
• AGA797034 13" Semi-Pneumatic Front Tire Kit, 13X6.50-6 (set of 2)
• AGA791083 Front Castor Suspension Forks (set of 2)
• AGA715155 Gravely Seat Cover, Gelcore Technology
• AGA715151 Real Tree Camouflage Seat Cover, GelCore Technology
• AGA891008 2-Bucket Powered Bagger, 6.3 Bushel Capacity Note: Requires 1 each of
• AGA791078 Lower Rops Bagger Mount Note: Required for installation of bagger on ZT HD units without a ROPS
• AGA791092 Bagger Mount Kit to suit 44" & 48"
• AGA715153 Gravely ZTR Cover - Fits all Zero-Turn models with decks up to 60"
• Please Note: Specifications subject to change without notice.
• Brand: GRAVELY
• Product Line: Zero Turn Radius Ride-On, ZTR,
