Extended Description

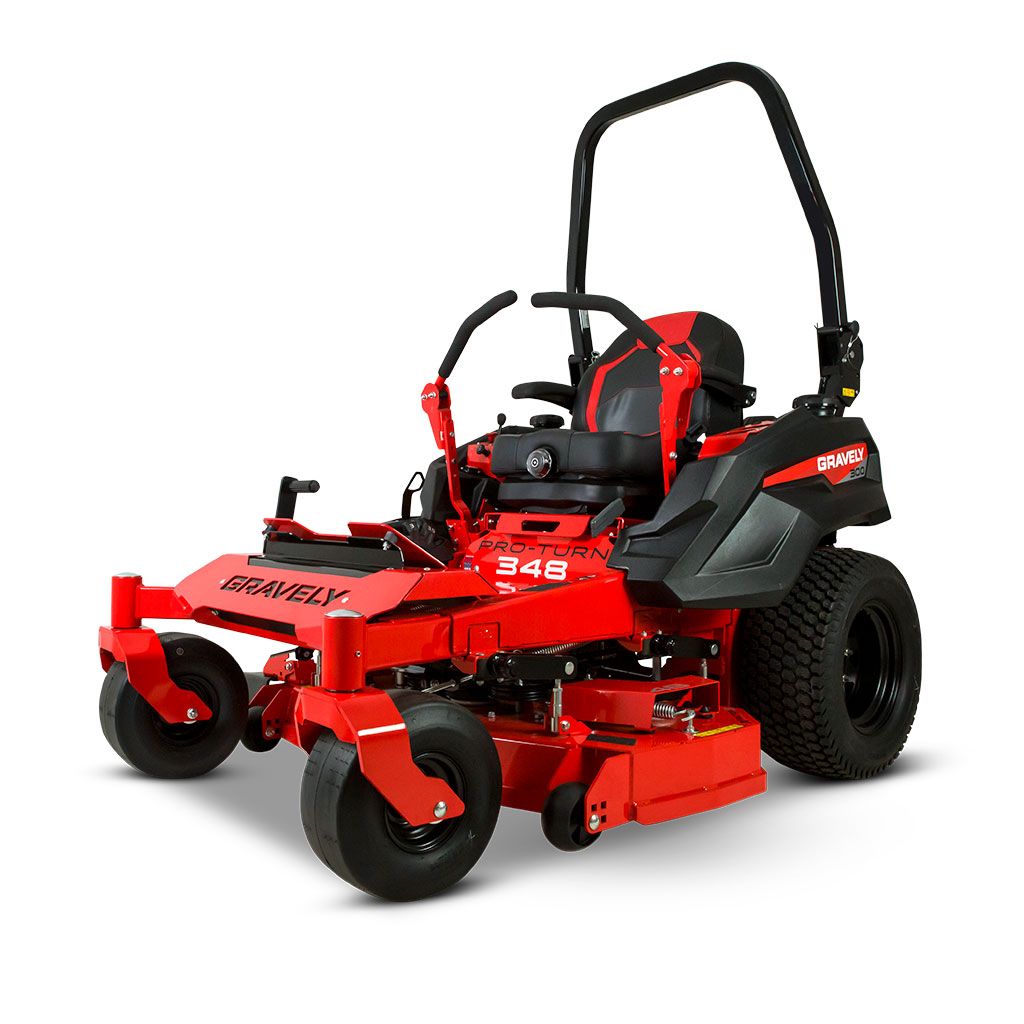

• Description: GRAVELY PRO-TURN 348, 48" Cut fitted with a Kawasaki FX801V, 25.5 hp Engine
• Editorial: COMFORT AND DURABILITY, YARD AFTER YARD AFTER YARD AFTER YARD... Introducing the Pro-Turn® 300. A newly designed, hard-working mower built to keep you comfortable from dawn to dusk. This is mowing to the next level thanks to its innovative features and superior cutting performance.
• Features: A premium quality Kawasaki FX801 V- twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners. PARKER HTJ Transaxles 12cc pumps.
• Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.
• FULLY WELDED TUBULAR FRAME One glace and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.
• Cut selection Offers 19 cutting positions, ranging from 1 inch to 5.5 inches, to make your lawn look its best.
• Foot-Operated Deck Lift
• X-FACTOR® 3 DECK The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
• Forged Aluminium cutter spindles with sealed ball bearings.
• Productivity- 5.3 acres per hour.
• Warranty: Residential / Domestic Use Limited Warranty: 5 Years / 1250 Hours - whichever comes first - to the original purchaser only. Engine Only: 3 Years (See engine manufacturer's warranty for details).
• Commercial Use Limited Warranty: 5 Years / 1250 Hours - whichever comes first - to the original purchaser only.
• Rental Application: 90 Days
• Please Note: For further details on our warranty terms and conditions including all limitations and exclusions please refer to the warranty section on our web site or contact our friendly sales team.
• Engine: Kawasaki FX801V
• HP: 25.5 hp, 852 cc (19kW) at 3,600 RPM as per SAE J1995
• Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine.
• Starter: 12-volt
• Ignition: Electronic
• Charging System: 12-volt (see engine manufacturers specifications)
• Oil Filter: Spin-on engine oil filter / Total oil capacity 2.4 U.S. qt. (2.3 litres) with filter
• Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
• Fuel Capacity: 47.3 Litres
• Fuel Filter: Replaceable, automotive-type
• Air Filter: Multi-Stage remote canister heavy duty air filter system
• Cooling: Air cooled flywheel fan
• Governor: Mechanical
• PTO Clutch: Ogura GT2.75 Electric
• Drive System: Dual hydrostatic.
• Hydrostatic Drive: V-belt drive from engine crankshaft
• Pumps: Parker HTJ 12cc
• Drive Cooling: Transmission mounted fans
• Ground Speed - Forward: Infinitely variable 0-17.7 kph
• Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
• Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
• Brakes: Hand brake.
• Caster Tyres: 15 x 6 x 6 smooth tread
• Tyres - Drive: 24 x 12 x 12
• Weight: 560.1 kg
• Safety Features: Operator presence system connected to clutch, seat, and park brakes.
• Seat: High back comfort with suspension and padded armrests
• Construction: STEEL Tubular frame welded
• ROPS: Foldable ROPS Standard
• Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
• Cup Holder: Yes
• Height: 76" ROPS up (1930.4mm) ROPS down 47.8”(1214.1mm)
• Overall Length: 84" (2133.6 mm)
• Width: 51" (1295.4 mm) With chute up
• Cutting Widths: 48" (1219.2) cut side discharge.
• Deck Lift: Foot-operated
• Deck Construction: Fabricated 7 Gauge
• Cutting Height(s): 1" – 5.5" (25.4 mm – 139.7 mm)
• Blade(s): 3 x Bar blades
• Blade Tip Speed: 18000 FPM
• Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life.
• Spindles: Forged Aluminium with sealed ball bearings
• Discharge Chute: High density, rubberised.
• Width of Cut: 48" (1219.2 mm)
• Optional Accessories: Optional accessories available for purchase separately include: AGA791096 Kit, mulch blades included 48".
• AGA792158 Trailer Hitch
• AGA792229 LED Head light kit
• AGA792234 Operator Controlled Discharge Baffle
• AGA792180 Sunshade Hard Top ROPS Mounted ***Requires ROPS to be mounted***
• AGA792052 Bar Tire Ag Style Kit, 24X12-12 (set of 2)
• AGA792228 Air Ride Seat
• AGA792227 12V Outlet Accessory
• AGA792211 Electric Deck Lift Kit
• AGA715155 Gravely Seat Cover, Gelcore Technology
• AGA715151 Real Tree Camouflage Seat Cover, GelCore Technology
• AGA892055 2 3-Bucket Powered Bagger, 12 Bushel Capacity ***Requires the relevant Bagger Mount Kit***
• AGA792226 Bagger Mount Kit to suit 44" & 48"
• AGA715153 Gravely ZTR Cover - Fits all Zero-Turn models with decks up to 60"
• Please Note: Specifications subject to change without notice.
• Brand: GRAVELY
• Product Line: Zero Turn Radius Ride-On, ZTR,
