BLH409

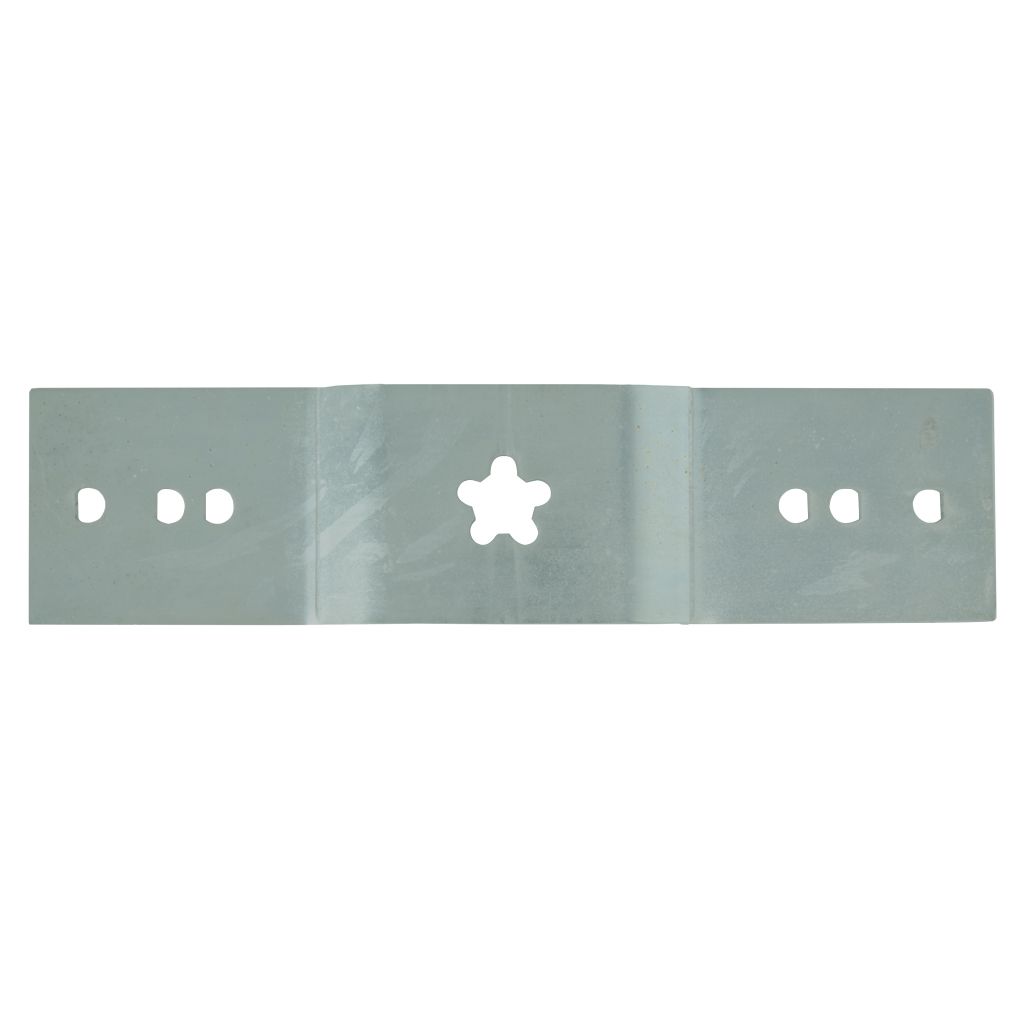

HUSQVARNA STEPPED BLADE BAR
ADAPTER 5-POINT STAR HOLE
Extended Description
- Description: Non-Genuine Husqvarna Selected 36", 38", 42", 46" And 54" Cut Stepped, 5 Point Star
- Hole, Swing Back Blade Conversion Carrier Bar
- Centre Hole Type: 5-Point Star
- Qty required per unit: 2 bars required for 36" cut
- Fits: 36" (915 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
- centre hole blade.
- Qty required per unit: 2 bars required for 36" cut
- Fits: 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
- centre hole blade.
- Qty required per unit: 2 bars required for 42" cut
- Fits: 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
- centre hole blade.
- Qty required per unit: 2 bars required for 38" cut
- blade system with a 5-point star centre hole blade.
- Qty required per unit: 2 bars required for 42" cut
- Fits: 42" (1067 mm) cut Husqvarna selected ride-on lawn mower models using a standard
- blade system with a 5-point star centre hole blade.
- bar blades (please read the product note below for a full list of components
- required).
- Qty required per unit: 2 bars required for 42" cut
- Fits: 46" cut Husqvarna TS246 (model 96041038500, year 2015) side discharge lawn tractors
- as a swing back blade carrier replacement option to the Rapid Release bar blades
- (please read the product note below for a full list of components required).
- Fits: 42" (1067 mm) cut Husqvarna TS242 (model 96041038400, year 2015) side discharge
- lawn tractors as a swing back blade carrier replacement option to the Rapid Release
- bar blades (please read the product note below for a full list of components
- required).
- Qty required per unit: 2 bars required for 42" cut
- centre hole blade.
- Fits: 46" cut Husqvarna TS246 (model 96041038500, year 2015) side discharge lawn tractors
- as a swing back blade carrier replacement option to the Rapid Release bar blades
- (please read the product note below for a full list of components required).
- Qty required per unit: 2 bars required for 46" cut
- Fits: 54" (1372 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star
- centre hole blade.
- Qty required per unit: 3 bars required for 54" cut
- Features: • Converts units which came standard off the production line with bar blades and
- allows them to be fitted with swing back blades. Please order the swing back blades
- separately from the options listed below.
- • Stepped carrier bar
- • Inner "D" holes: 6.181" (157 mm)
- • Middle "D" holes: 7.283" (185 mm)
- • Outer "D" holes: 9.055" (230 mm)
- Standard Pack Quantity: 1
- Footnote: All blade carriers are sold as singles, order the quantity required to make up a
- set.
- Please Note: For standard 36", 38" & 42" cut Lawn Tractor models use with our BLS3653 x 2 qty
- blade sets and BBN3722 x 2 qty bolt sets or for a blade and bolt combo option use
- our BRC5543 x 2 qty.
- Or
- For 54" cut: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets,
- or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Or
- For Rapid Release 42" cut models the components required to replace the Rapid
- Release bar blade system are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3653 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5543 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna
- Rapid Release bar blade OEM: 580 92 11-01)
- Please Note: For this application please assemble blades and bolts using the
- outside blade mounting holes of the blade carrier.
- **Please also note: to replace the rapid release bar blade system with the swing
- back blade and blade carrier systems above it is necessary to remove the rapid
- release mounting system components and return to the conventional bolt on mounting
- system for the carrier bar.**
- Or
- For Rapid Release 46" cut models the components required to replace the Rapid
- Release bar blades are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3817 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5544 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna
- Rapid Release bar blade OEM: 581 04 39-01)
- Please Note: For this application please assemble blades and bolts using the middle
- blade mounting holes of the blade carrier.
- **Please also note: to replace the rapid release bar blade system with the swing
- back blade and blade carrier systems above it is necessary to remove the rapid
- release mounting system components and return to the conventional bolt on mounting
- system for the carrier bar.**
- Brand: Husqvarna - Non Genuine
- Product Line: Blade, carrier
- Features: • Converts units which came standard off the production line with bar blades and
- allows them to be fitted with swing back blades. Please order the swing back blades
- separately from the options listed below.
- • Stepped carrier bar
- • Inner "D" holes: 6.181" (157 mm)
- • Middle "D" holes: 7.283" (185 mm)
- • Outer "D" holes: 9.055" (230 mm)
- Standard Pack Quantity: 1
- Note: All blade carriers are sold as singles, order the quantity required to make up a
- set.
- Please Note: For standard 36", 38" & 42" cut Lawn Tractor models use with our BLS3653 x 2 qty
- blade sets and BBN3722 x 2 qty bolt sets or for a blade and bolt combo option use
- our BRC5543 x 2 qty.
- Or
- For 54" cut: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets,
- or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Or
- For Rapid Release 42" cut models the components required to replace the Rapid
- Release bar blade system are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3653 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5543 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna
- Rapid Release bar blade OEM: 580 92 11-01)
- Please Note: For this application please assemble blades and bolts using the
- outside blade mounting holes of the blade carrier.
- **Please also note: to replace the rapid release bar blade system with the swing
- back blade and blade carrier systems above it is necessary to remove the rapid
- release mounting system components and return to the conventional bolt on mounting
- system for the carrier bar.**
- Or
- For Rapid Release 46" cut models the components required to replace the Rapid
- Release bar blades are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3817 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5544 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna
- Rapid Release bar blade OEM: 581 04 39-01)
- Please Note: For this application please assemble blades and bolts using the middle
- blade mounting holes of the blade carrier.
- **Please also note: to replace the rapid release bar blade system with the swing
- back blade and blade carrier systems above it is necessary to remove the rapid
- release mounting system components and return to the conventional bolt on mounting
- system for the carrier bar.**
- Brand: Husqvarna - Non Genuine
- Product Line: Blade, carrier
Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2025. All Rights Reserved.
Extended Description by Producty
- Description:
- Non-Genuine
- Husqvarna,
- Stepped, 5 Point Star Hole, Swing Back Blade Conversion Carrier Bar
- Features:
• Converts units which came standard off the production line with bar blades and allows them to be fitted with swing back blades. Please order the swing back blades separately from the options listed below. - • Stepped carrier bar
Husqvarna
- 2 bars required for 36", 38", 42"& 46" cut
- 3 bars required for 54" cut
- Fits: 36" (915 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star centre hole blade.
- Fits: 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star centre hole blade.
- Fits: 42" (1067 mm) cut Husqvarna selected ride-on lawn mower models using a standard blade system with a 5-point star centre hole blade.
- Fits: 42" (1067 mm) cut Husqvarna TS242 (model 96041038400, year 2015) side discharge lawn tractors as a swing back blade carrier replacement option to the Rapid Release bar blades (please read the product note below for a full list of components required).
- Fits: 46" cut Husqvarna TS246 (model 96041038500, year 2015) side discharge lawn tractors as a swing back blade carrier replacement option to the Rapid Release bar blades (please read the product note below for a full list of components required).
- Fits: 54" (1372 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star centre hole blade.
- Product Line Notes: For 36" & 38" cut: Use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.
- For standard 42" cut Lawn Tractor models use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty bolt sets or for a blade and bolt combo option use our BRC5543 x 2 qty.
- Or
- For Rapid Release 42" cut models the components required to replace the Rapid Release bar blade system are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3653 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5543 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna Rapid Release bar blade OEM - 580 92 11-01)
- Please Note: For this application please assemble blades and bolts using the outside blade mounting holes of the blade carrier.
- For Rapid Release 46" cut models the components required to replace the Rapid Release bar blades are -
- • Use BLH409 blade carriers x 2 qty
- • Use BLH7733 mounting bolt and washer x 2 qty
- • Use BLS3817 blade sets x 2 qty
- • Use BBN3722 bolt sets x 2 qty
- • Or use our blade and bolt combo pack option BRC5544 x 2 qty
- (The above components can be used as a swing back blade option to replace Husqvarna Rapid Release bar blade OEM - 581 04 39-01)
- Please Note: For this application please assemble blades and bolts using the middle blade mounting holes of the blade carrier.
- **Please also note: to replace the rapid release bar blade system with the swing back blade and blade carrier systems above it is necessary to remove the rapid release mounting system components and return to the conventional bolt on mounting system for the carrier bar.**
- For 54" cut: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Outside Diameter: 6.181" (Inner "D" holes), 7.283" (Middle "D" holes), 9.055" (Outer "D" holes), 157 mm (Inner "D" holes), 185 mm (Middle "D" holes), 230 mm (Outer "D" holes)
- Centre Hole Type: 5-Point Star
- Standard Pack Quantity: 1
- Australian Made: Yes
