Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

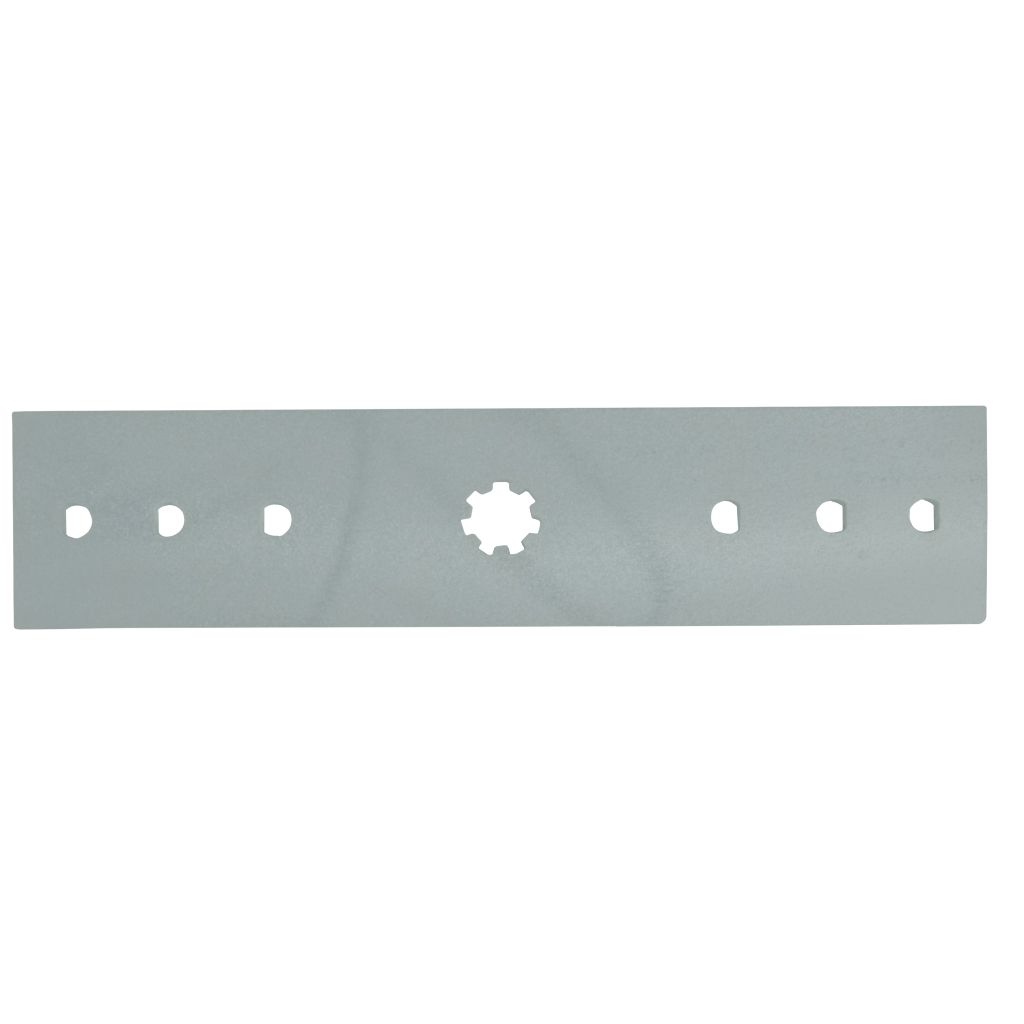

BLH6899
JOHN DEERE 38" 42" & 48" CUT
BLADE BAR ADAPTOR
Extended Description
- Description: Non-Genuine John Deere Selected 38", 42” And 48” Cut, 7 Point Star Swing Back
- Blade Conversion Carrier Bar
- Centre Hole Type: 7-Point Star
- Qty required per unit: 2 Bars required for 38" cut
- Fits: 38" (965 mm) cut John Deere selected ride-on lawn mower models including but not
- limited to X300 model zero turn radius (ZTR) ride-on models.
- Qty required per unit: 2 Bars required for 38" cut
- Fits: 42" (1067 mm) cut John Deere selected models including but not limited to 102, 105,
- 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models and
- Z225 EZtrak™ Residential zero turn radius (ZTR) ride-on models.
- Fits: 42" (1067 mm) cut John Deere selected models including but not limited to 102, 105,
- 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models and
- Z225 EZtrak™ Residential zero turn radius (ZTR) ride-on models.
- Qty required per unit: 2 Bars required for 42" cut
- 155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak™ Residential
- zero turn radius (ZTR) ride-on models.
- Fits: 48" (1220 mm) cut John Deere selected models including but not limited to 145,
- 155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak™ Residential
- zero turn radius (ZTR) ride-on models.
- Qty required per unit: 3 Bars required for 48" cut
- Features: • Converts units which came standard off the production line with bar blades and
- allows them to be fitted with swing back blades. Please order the swing back blades
- separately from the options listed below.
- • Inner "D" holes: 5" (127 mm)
- • Middle "D" holes: 7.283" (185 mm)
- • Outside "D" holes: 9.370" (238 mm)
- Standard Pack Quantity: 1
- Footnote: All blade carriers are sold as singles, order the quantity required to make up a
- set.
- Please Note: For 38” & 42" cut use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty
- bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.
- Or
- For 48” cut use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt
- sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Brand: John Deere - Non Genuine,
- Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
- Features: • Converts units which came standard off the production line with bar blades and
- allows them to be fitted with swing back blades. Please order the swing back blades
- separately from the options listed below.
- • Inner "D" holes: 5" (127 mm)
- • Middle "D" holes: 7.283" (185 mm)
- • Outside "D" holes: 9.370" (238 mm)
- Standard Pack Quantity: 1
- Note: All blade carriers are sold as singles, order the quantity required to make up a
- set.
- Please Note: For 38” & 42" cut use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty
- bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.
- Or
- For 48” cut use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt
- sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Brand: John Deere - Non Genuine,
- Product Line: Blade carrier bar - swing back, swing back blade conversion carrier bar,
Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2025. All Rights Reserved.
Extended Description by Producty
- Description:
- Non-Genuine
- John Deere,
- 7 Point Star Swing Back Blade Conversion Carrier Bar
- Features:
• Converts units which came standard off the production line with bar blades and allows them to be fitted with swing back blades. Please order the swing back blades separately from the options listed below. John Deere
- 2 Bars required for 38" & 42" cut
- 3 Bars required for 48" cut
- Fits: 38" (965 mm) cut John Deere selected ride-on lawn mower models including but not limited to X300 model zero turn radius (ZTR) ride-on models.
- Fits: 42" (1067 mm) cut John Deere selected models including but not limited to 102, 105, 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models and Z225 EZtrak Residential zero turn radius (ZTR) ride-on models.
- Fits: 48" (1220 mm) cut John Deere selected models including but not limited to 145, 155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak Residential zero turn radius (ZTR) ride-on models.
- Product Line Notes: For 38” & 42" cut use with our BLS3653 x 2 qty blade sets and BBN3722 x 2 qty bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 2 qty.
- For 48” cut use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets, or for a blade and bolt combo pack option use our BRC5543 x 3 qty.
- Outside Diameter: 5" (Inner "D" holes), 7.283" (Middle "D" holes), 9.370" (Outside "D" holes), 127 mm (Inner "D" holes), 185 mm (Middle "D" holes), 238 mm (Outside "D" holes)
- Centre Hole Type: 7-Point Star
- Standard Pack Quantity: 1
- Australian Made: Yes
