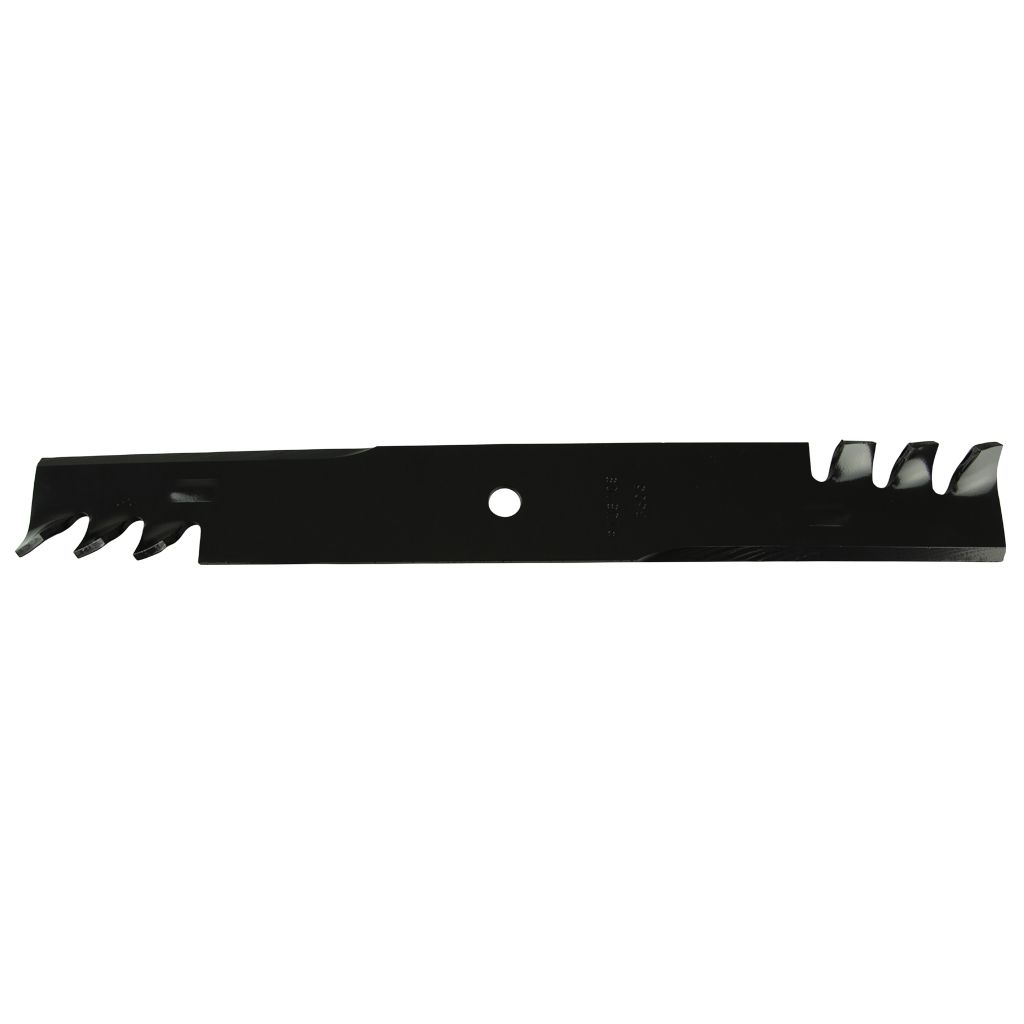

BIGDOG / DIXON / HUSTLER 20-1/2

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

BLR8164

BIGDOG / DIXON / HUSTLER

20-1/2" COPPERHEAD MULCHER BAR

2 X 42" / 3 X 60" CUT H/DUTY

Brand: GA SPARES - GA
Qty:

Extended Description

  • Description: Non-Genuine Bad Boy, BigDog, Dixon, Exmark, GRAVELY, HUSTLER, TORO Selected 42" And
  • 60" Cut Copperhead Mulcher Bar Blade
  • Replaces OEM: Bad Boy 038-2007-00, 038-6060-00, 038-6050-00
  • BigDog 794214, 794230
  • Dixon 9383, 12441, 18931
  • Exmark 1-613112, 613112
  • GRAVELY 46999
  • HUSTLER 794214, 794230
  • TORO 1030301, 105-7718, 105-7718-03
  • Centre Hole Diameter: (inches) 5/8"
  • Centre Hole Diameter: (mm) 15.875 mm
  • Length: (in) 20 1/2"
  • Length: (mm) 520.7 mm
  • Width: (inches) 3"
  • Width: (mm) 76.2 mm
  • Centre Hole Type: Round
  • Fits: 60" (1524 mm) cut Bad Boy Lightning series and Pup series zero turn radius (ZTR)
  • ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 42" (1067 mm) cut BigDog "A" series (20 hp model 931345), "C" series (17.5 hp model
  • 931428 and 18 hp model 931436) zero turn radius (ZTR) ride-on models.
  • Qty required per unit: 2 blades required for 42" cut
  • Fits: 42" (1067 mm) cut BigDog "A" series (20 hp model 931345), "C" series (17.5 hp model
  • 931428 and 18 hp model 931436) zero turn radius (ZTR) ride-on models.
  • Fits: 60" (1524 mm) cut BigDog "R" Series (26 hp model 931535) zero turn radius (ZTR)
  • ride-on models.
  • Qty required per unit: 2 blades required for 42" cut
  • Fits: 60" (1524 mm) cut BigDog "R" Series (26 hp model 931535) zero turn radius (ZTR)
  • ride-on models.
  • ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Qty required per unit: 3 blades required for 60" Cut
  • (ZTR) ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 60” (1524 mm) cut Dixon selected models including 8025, ZTR560 (year 1993),
  • ZTR5601 (years 1994 to 1996), ZTR6601 (years 1995 to 1996) zero turn radius (ZTR)
  • ride-on models.
  • Fits: 60” (1524 mm) cut GRAVELY selected zero turn radius (ZTR) ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 60” (1524 mm) cut Exmark selected models including Lazer Z, zero turn radius
  • (ZTR) ride-on models.
  • Qty required per unit: 2 blades required for 42" cut
  • Qty required per unit: 3 blades required for 60" Cut
  • and Super Z fitted with 60” cut XR‑7 decks, HUSTLER X‑One and Super Z fitted
  • with 60” cut VX4 decks, zero turn radius (ZTR) ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 60” (1524 mm) cut GRAVELY selected zero turn radius (ZTR) ride-on models.
  • Fits: 60” (1524 mm) cut TORO Z500 and Z528 Z Master zero turn radius (ZTR) models
  • fitted with 7‑Gauge side discharge decks and Z500, Z553, Z550, Z555, Z557, Z558,
  • Z560, Z580, Z580‑D, Z587L, Z588E, Z589, Z590‑D, Z593‑D, Z595‑D and Z597‑D
  • Z Master zero turn radius (ZTR) models fitted with TURBO FORCE side discharge decks
  • .
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 42” (1067 mm) cut HUSTLER models as a mulcher blade option including selected
  • Mini‑FasTrak and Mini Z, zero turn radius (ZTR) ride-on models.
  • Qty required per unit: 2 blades required for 42" cut
  • Fits: 60” (1524 mm) cut HUSTLER models including selected FasTrak Super Duty, HUSTLER Z
  • and Super Z fitted with 60” cut XR‑7 decks, HUSTLER X‑One and Super Z fitted
  • with 60” cut VX4 decks, zero turn radius (ZTR) ride-on models.
  • Qty required per unit: 3 blades required for 60" Cut
  • Fits: 60” (1524 mm) cut TORO Z500 and Z528 Z Master zero turn radius (ZTR) models
  • fitted with 7‑Gauge side discharge decks and Z500, Z553, Z550, Z555, Z557, Z558,
  • Z560, Z580, Z580‑D, Z587L, Z588E, Z589, Z590‑D, Z593‑D, Z595‑D and Z597‑D
  • Z Master zero turn radius (ZTR) models fitted with TURBO FORCE side discharge decks
  • .
  • Features: Copperhead mulcher blade, flat and fluted, right hand cut.
  • Standard Pack Quantity: 1
  • Note: All blade bars are sold as singles, order the quantity required to make up a set.
  • Please Note: For Gator Mulcher blade options use our part numbers BLR6339 (2 1/2" wide) or
  • BLR7481 (3" wide). For a standard bar blade option use our part number BLR6939.
  • Brand: Copperhead
  • Product Line: Copperhead Mulcher Bar Blade,
  • Features: Copperhead mulcher blade, flat and fluted, right hand cut.
  • Standard Pack Quantity: 1
  • Note: All blade bars are sold as singles, order the quantity required to make up a set.
  • Please Note: For Toothed Mulcher blade options use our part numbers BLR6339 (2 1/2" wide) or
  • BLR7481 (3" wide). For a standard bar blade option use our part number BLR6939.
  • Brand: Copperhead
  • Product Line: Copperhead Mulcher Bar Blade,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

Extended Description by Producty

  • Description:
  • Non-Genuine
  • BigDog,
  • Dixon,
  • Exmark,
  • Hustler,
  • Copperhead Mulcher Bar Blade

  • Features:
    • Copperhead mulcher blade, flat and fluted, right hand cut.

  • BigDog

  • 2 blades required for 42" cut
  • Fits: 42" (1067 mm) cut BigDog "A" series (20 hp model 931345), "C" series (17.5 hp model 931428 and 18 hp model 931436) zero turn radius (ZTR) ride-on lawn mower models.
  • Replaces OEM: 794214, 794230
  • 3 blades required for 60" Cut
  • Fits: 60" (1524 mm) cut BigDog "R" Series (26 hp model 931535) zero turn radius (ZTR) ride-on lawn mower models.
  • Replaces OEM: 794214, 794230

  • Dixon

  • 3 blades required for 60" Cut
  • Fits: 60
  • Replaces OEM: 9383, 12441, 18931

  • Exmark

  • 3 blades required for 60" Cut
  • Fits: 60
  • Replaces OEM: 613112

  • Hustler

  • 2 blades required for 42" cut
  • Fits: 42
  • Replaces OEM: 794214, 794230
  • 3 blades required for 60" Cut
  • Fits: 60
  • Replaces OEM: 794214, 794230

  • Deck Size: 42" & 60", 1067 mm & 1524 mm, 106 cm & 152 cm
  • Length: 20 1/2", 520.7 mm
  • Width: 3", 76.2 mm
  • Centre Hole Diameter: 5/8", 15.875 mm
  • Centre Hole Type: Round

  • Standard Pack Quantity: 1
  • Please Note: This blade replaces our Toothed Mulcher blade part number BLR7481. For a standard bar blade option use our part number BLR6939.
  • Centre Hole Type: Round

  • Standard Pack Quantity: 1
  • Please Note: This blade replaces our Gator Mulcher blade part number BLR7481. For a standard bar blade option use our part number BLR6939.
