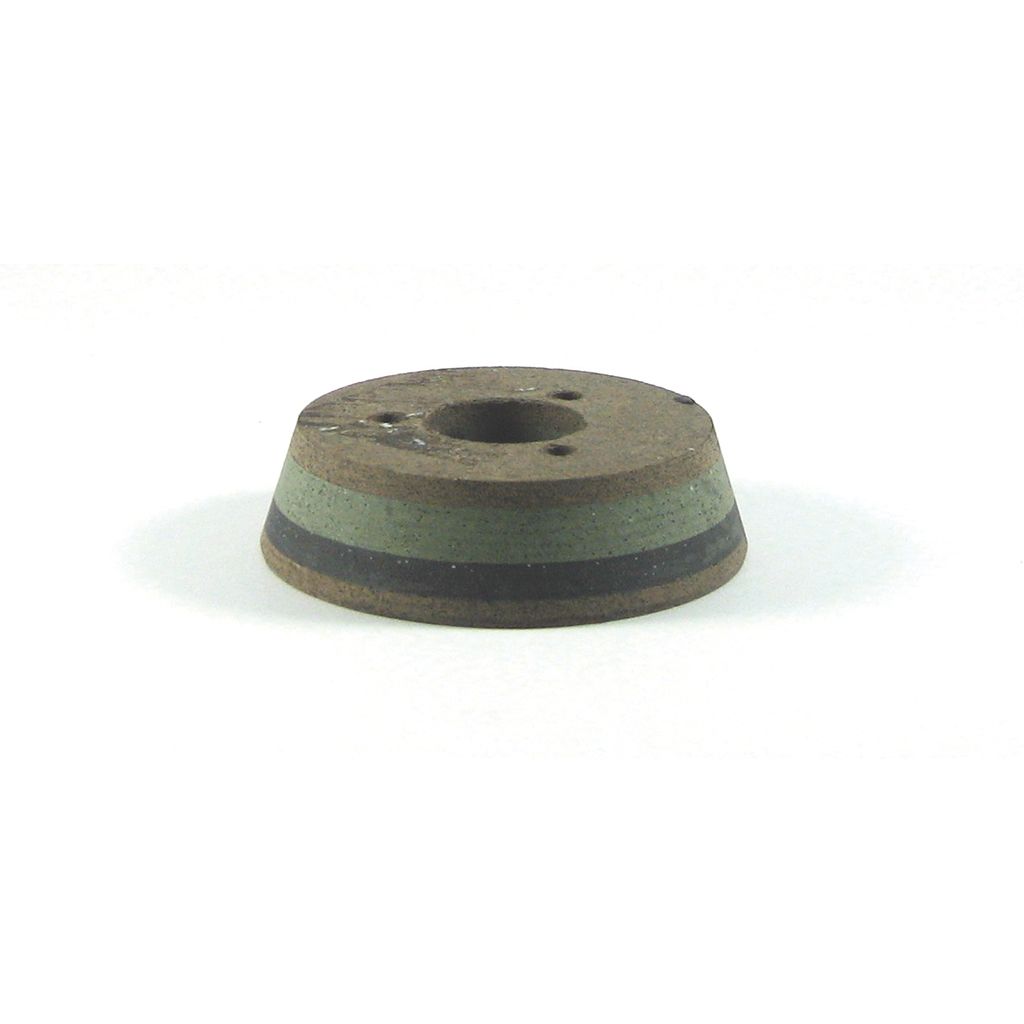

NON-GENUINE COX CLUTCH DRIVE CONE - LATE STYLE WITH THREE OUTER MOUNTING HOLES

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

CHD6555

NON-GENUINE COX CLUTCH DRIVE

CONE - LATE STYLE WITH THREE

OUTER MOUNTING HOLES

Brand: GA SPARES - GA
Qty:

Extended Description

  • Description: Non-Genuine Cox Clutch Drive Cone - Late Style With Three Outer Mounting Holes
  • Replaces OEM: Cox CC2095NG, CC2095GNE, CC3095J, CC3095L,
  • Inside Diameter: (inches) 1.18"
  • Inside Diameter: (mm) 30 mm
  • Outside Diameter: (inches) 3.74"
  • Outside Diameter: (mm) 95 mm
  • Thickness: (inches) 1"
  • Thickness: (mm) 25.4 mm
  • Fits: Cox New Generation models.
  • Fits: Cox selected models including but not limited to New Generation, New ERA, C1332
  • [13/32, 13-32](13 hp models 9505G and 9506C years 2005 to 2007) ride-on lawn mower
  • models.
  • Features: Cox drive cone, new style with 3 outer holes for locating pins.
  • Features: Later style with 3 outer holes for locating screws.
  • Standard Pack Quantity: 1
  • Standard Pack Quantity: 1
  • necessary to take the shine off the surface to give the cone a surface to grip to. Any grooves will need to be machined in a lathe.
  • Note: For early type clutch cone options, with one pin hole (note: not suited to the
  • models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954
  • (genuine).
  • Please Note: When installing a new Cox drive cone please insure the drive plate surfaces are in
  • good condition with no grooves. It is necessary to deglaze the drive plate surface
  • so the new cone will not slip generating excessive heat & damaging the drive cone.
  • As the new cones can no longer contain asbestos over heating will cause premature
  • failure. A quick way to deglaze the drive plates is to use a 4" disc sander with
  • medium grit paper. This can also be done quickly at each service to reduce drive
  • failure. It is only necessary to take the shine off the surface to give the cone a
  • surface to grip to. Any grooves will need to be machined in a lathe.
  • Brand: Cox Non-Genuine,
  • Product Line: Clutch cone, cone - clutch, drive cone - clutch,
  • Features: Later style with 3 outer holes for locating screws.
  • Standard Pack Quantity: 1
  • Note: For early type clutch cone options, with one pin hole (note: not suited to the
  • models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954
  • (genuine).
  • Please Note: When installing a new Cox drive cone please insure the drive plate surfaces are in
  • good condition with no grooves. It is necessary to deglaze the drive plate surface
  • so the new cone will not slip generating excessive heat & damaging the drive cone.
  • As the new cones can no longer contain asbestos over heating will cause premature
  • failure. A quick way to deglaze the drive plates is to use a 4" disc sander with
  • medium grit paper. This can also be done quickly at each service to reduce drive
  • failure. It is only necessary to take the shine off the surface to give the cone a
  • surface to grip to. Any grooves will need to be machined in a lathe.
  • Brand: Cox Non-Genuine,
  • Product Line: Clutch cone, cone - clutch, drive cone - clutch,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

Extended Description by Producty

  • Description:
  • Non-Genuine
  • Cox,
  • Clutch Drive Cone - Late Style With Three Outer Mounting Holes

  • Features:
    • Later style with 3 outer holes for locating screws.

  • Cox

  • Fits: Cox selected models including but not limited to New Generation, New ERA, C1332 [13/32, 13-32](13 hp models 9505G and 9506C years 2005 to 2007) ride-on lawn mower models.
  • Replaces OEM: CC2095NG, CC2095GNE, CC3095J, CC3095L

  • Thickness: 1", 25.4 mm
  • Inside Diameter: 1.18", 30 mm
  • Outside Diameter: 3.74", 95 mm

  • Standard Pack Quantity: 1
  • Please Note: For early type clutch cone options, with one pin hole (not suited to the models listed above), use our part numbers CHD5335 (non-genuine) or CHD6954 (genuine).
  • When installing a new Cox drive cone please insure the drive plate surfaces are in good condition with no grooves. It is necessary to deglaze the drive plate surface so the new cone will not slip generating excessive heat and damaging the drive cone. As the new cones can no longer contain asbestos over heating will cause premature failure. A quick way to deglaze the drive plates is to use a 4” disc sander with medium grit paper. This can also be done quickly at each service to reduce drive failure. It is only necessary to take the shine off the surface to give the cone a surface to grip to. Any grooves will need to be machined in a lathe.
