CHD8242

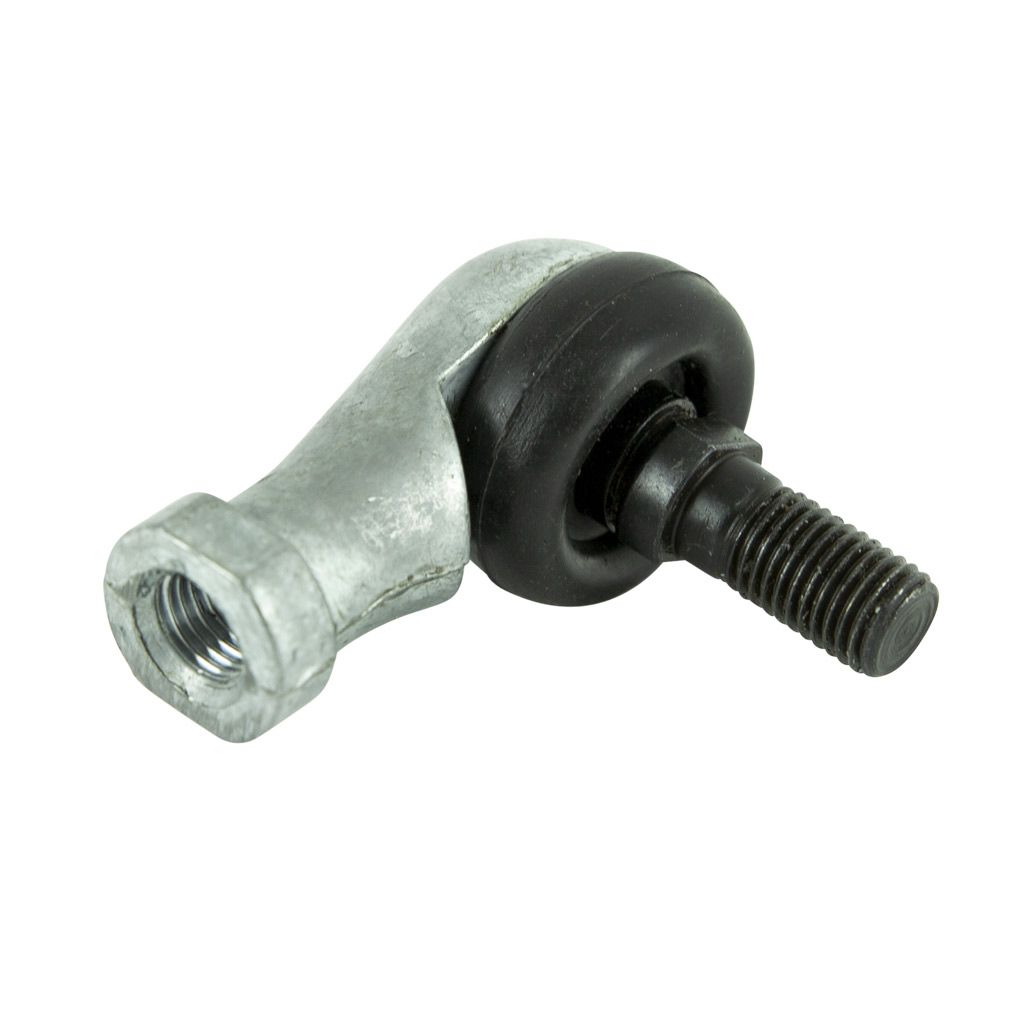

GREENFIELD TIE ROD END L/H

Brand: GA SPARES - GA

Extended Description

Description: Non-Genuine Greenfield Ball Joint / Tie Rod End, M10 x 1.25 Male Right Hand Thread
x M10 x 1.25 Female Left Hand Thread
Replaces OEM: Greenfield GT 02294, GT02294, GT2294, GT 2294
Height: (inches) 2.086" (Overall Height)
Height: (mm) 53 mm (Overall Height)
Length: (in) 2.303" (Overall Length)
Length: (mm) 58.5 mm (Overall Length)
Thread Size: M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 0.787" (20
mm) Long
Thread Size: M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 0.787" (20
mm) Long
Fits: 25” (635 mm) cut Greenfield MiniMow ride-on lawn mower models as the tie rod end
that connects the steering link to the steering transfer shaft.
Fits: 32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32
Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck
(model GT22875SD) ride-on lawn mower models as the tie rod end that connects the
steering link rod to the chain sprocket wheel.
Fits: 25” (635 mm) cut Greenfield MiniMow ride-on lawn mower models as the tie rod end
that connects the steering link to the steering transfer shaft.
sprocket wheel.
Fits: 32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32
Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck
(model GT22875SD) ride-on lawn mower models as the tie rod end that connects the
steering link rod to the chain sprocket wheel.
Fits: 32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32
Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck
(model GT22875SD) ride-on lawn mower models as the tie rod end that connects the
steering link rod to the chain sprocket wheel.
Fits: 34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT
17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawn
mower models as the tie rod end that connects the steering link rod to the chain
sprocket wheel.
Fits: 32” (813 mm) cut Greenfield Evolution FASTCUT32 (11.5 hp to 18 hp) ride-on lawn
mower models as the tie rod end that connects the steering link rod to the chain
sprocket wheel.
Fits: 34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT
17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawn
mower models as the tie rod end that connects the steering link rod to the chain
sprocket wheel.
Fits: 42” cut Greenfield FASTCUT 25/42 V-Twin Deluxe (model GT22885) ride-on lawn mower
models as the tie rod end that connects the steering link rod to the chain sprocket
wheel.
Features: • Male End: M10 x 1.25 right hand thread
• Female End: M10 x 1.25 left hand thread
• Thread Length: 0.787" (20 mm)
• Overall Length: 2.303" (58.5 mm)
• Overall Height: 2.086" (53 mm)
Features: • Male End: M10 x 1.25 right hand thread
• Female End: M10 x 1.25 left hand thread
• Thread Length: 0.787" (20 mm)
• Overall Length: 2.303" (58.5 mm)
• Overall Height: 2.086" (53 mm)
Standard Pack Quantity: 1
Standard Pack Quantity: 1
rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded
tie rod end that is used on selected models as the inner and outer tie rod ends for
the steering drag links and is also used as the tie rod end that connects the
steering link rod to the steering crank).
Brand: Greenfield Non-Genuine,
Please Note: For many late model Greenfield ride-on lawn mowers use this left-hand threaded tie
rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded
tie rod end that is used on selected models as the inner and outer tie rod ends for
the steering drag links and is also used as the tie rod end that connects the
steering link rod to the steering crank).
Brand: Greenfield Non-Genuine,
Product Line: Ball joint, drag link end, tie rod end, rod end,
Features: • Male End: M10 x 1.25 right hand thread
• Female End: M10 x 1.25 left hand thread
• Thread Length: 0.787" (20 mm)
• Overall Length: 2.303" (58.5 mm)
• Overall Height: 2.086" (53 mm)
Standard Pack Quantity: 1
Please Note: For many late model Greenfield ride-on lawn mowers use this left-hand threaded tie
rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded
tie rod end that is used on selected models as the inner and outer tie rod ends for
the steering drag links and is also used as the tie rod end that connects the
steering link rod to the steering crank).
Brand: Greenfield Non-Genuine,
Product Line: Ball joint, drag link end, tie rod end, rod end,

Extended Description by Producty

Description:
Non-Genuine
Greenfield,
Ball Joint / Tie Rod End, M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread
Features:
• Male End: M10 x 1.25 right hand thread
• Female End: M10 x 1.25 left hand thread
• Thread Length: .787" (20 mm)
• Overall Length: 2.303" (58.5 mm)
• Overall Height: 2.086" (53 mm)
Greenfield
Fits: 25
Product Line Notes: For many late model Greenfield ride-on lawn mowers use this left-hand threaded tie rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded tie rod end that is used on selected models as the inner and outer tie rod ends for the steering drag links and is also used as the tie rod end that connects the steering link rod to the steering crank).
Replaces OEM: GT 02294, GT02294, GT2294, GT 2294
Length: 2.303" (Overall Length), 58.5 mm (Overall Length)
Height: 2.086" (Overall Height), 53 mm (Overall Height)
Thread Size: M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 20 mm (.787") Long
Standard Pack Quantity: 1
Height: 2.086" (Overall Height), 53 mm (Overall Height)
Thread Size: M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 20 mm (.787") Long
Standard Pack Quantity: 1
