Extended Description

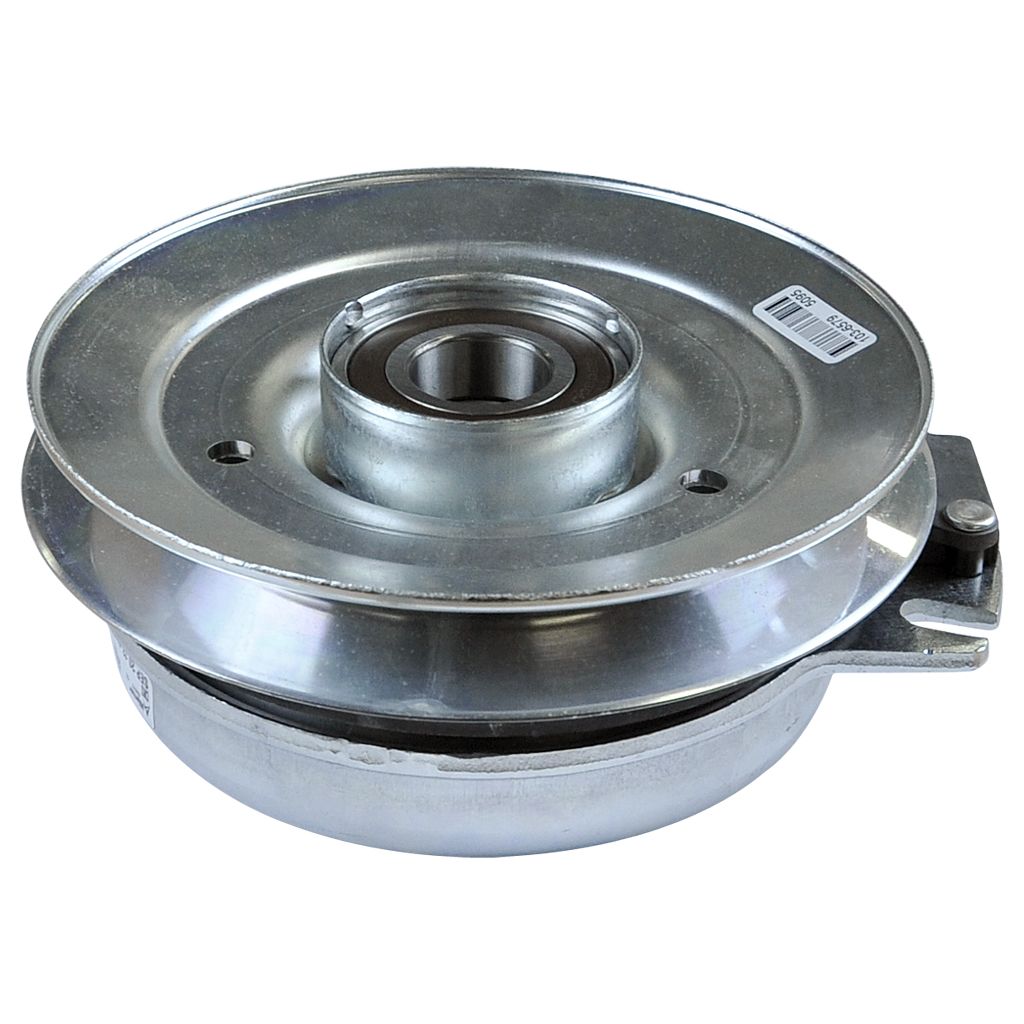

• Description: Electric PTO Clutch Assembly
• Replaces OEM: Warner: 5218-99, 5218-202
• Exmark: 103-3246, 103-6579, 109-7665, 109-7673, 116-1611
• Toro: 103-6579, 116-1611
• Inside Diameter: (inches) 1 1/8
• Inside Diameter: (mm) 28
• Pulley Diameter : (inches) 7 1/4
• Pulley Diameter : (mm) 184
• Fits: Toro Selected Z Master models including Z588E (74255) 2005 & 2006 models fitted with 60" cut Turbo Force decks, Z588E (74256) 2005 & 2006 models fitted with 72" cut Turbo Force decks.
• Fits: Selected Exmark Ride-ons,
• Features: Manufactured by an OEM supplier. Uses 5/8" belt ("B" or 69 Series Belt). Operates in a clockwise direction.
• Standard Pack Quantity: 1
• Please Note: IMPORTANT INFORMATION ON ELECTRIC CLUTCHES
• Over the counter sales of clutches as spare parts should be discouraged.
• WHY? - The main causes of failures to electric clutches are due to faults with the
• battery and/or charging circuits not providing the correct current to operate the
• clutch adequately leading to premature failure. Electric PTO clutches are a
• specialist component that should only be fitted by a servicing dealer with the
• correct equipment to test both the charging circuits and battery condition. It is
• therefore the responsibility of the servicing dealer to test these items prior to
• installing a new clutch. Failure to do so will void warranty. Warranty covers
• normal use and does not cover damage or defect which results from alteration,
• accident, neglect, or improper clutch selection, installation, operation, or
• maintenance. Warranty covers faulty manufacture and/or workmanship.
• GA Spares stocks electric clutches manufactured by an OEM supplier.
• Brand: Toro - Non Genuine, Exmark - Non Genuine, Warner,
• Product Line: Electric, clutch,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2025. All Rights Reserved.

• Description:
• Non-Genuine
• Exmark,
• Toro,
• Warner,
• Electric PTO Clutch Assembly


• Features:
  • Manufactured by an OEM supplier
• • 1 1/8" (28.575 mm) I.D Hub
• • 7.15" (181.61 mm) O.D Precision machined double pulley
• • 200 ft. lbs. torque
• • Suitable for use with 1/2" ("A" or 68 series) or 5/8” (“B” or 69 series) belts
• • Operates in a clockwise direction (when viewed from the pulley side of the clutch)
• • Uses cool coil technology
• • High temperature heavy duty bearings
• • Replaceable pulley bearing
• • Integrated, water tight wiring harness



• Exmark

• Fits: Exmark selected zero turn radius (ZTR) ride-on models.

• Product Line Notes: Please note: Important - Exmark Lazer Z AC EFI models require the wire harness to be spliced.

• Replaces OEM: 103-3246, 103-6579, 109-7665, 109-7673, 116-1611


• Toro

• Fits: 60" (1524 mm) cut Toro selected Z Master models including but not limited to Z588E (model 74255 years 2005 to 2006) zero turn radius (ZTR) ride-on models fitted with Turbo Force decks.
• Fits: 72" (1828 mm) cut Toro selected Z Master models including but not limited to Z588E (model 74256 years 2005 to 2006) zero turn radius (ZTR) ride-on models fitted with Turbo Force decks.

• Replaces OEM: 103-6579, 116-1611


• Warner

• Replaces OEM: 5218-99, 5218-202

•

• Inside Diameter: 1 1/8", 28.575 mm

• Pulley Diameter: 7.15", 181.61 mm

•

• Standard Pack Quantity: 1
