Extended Description

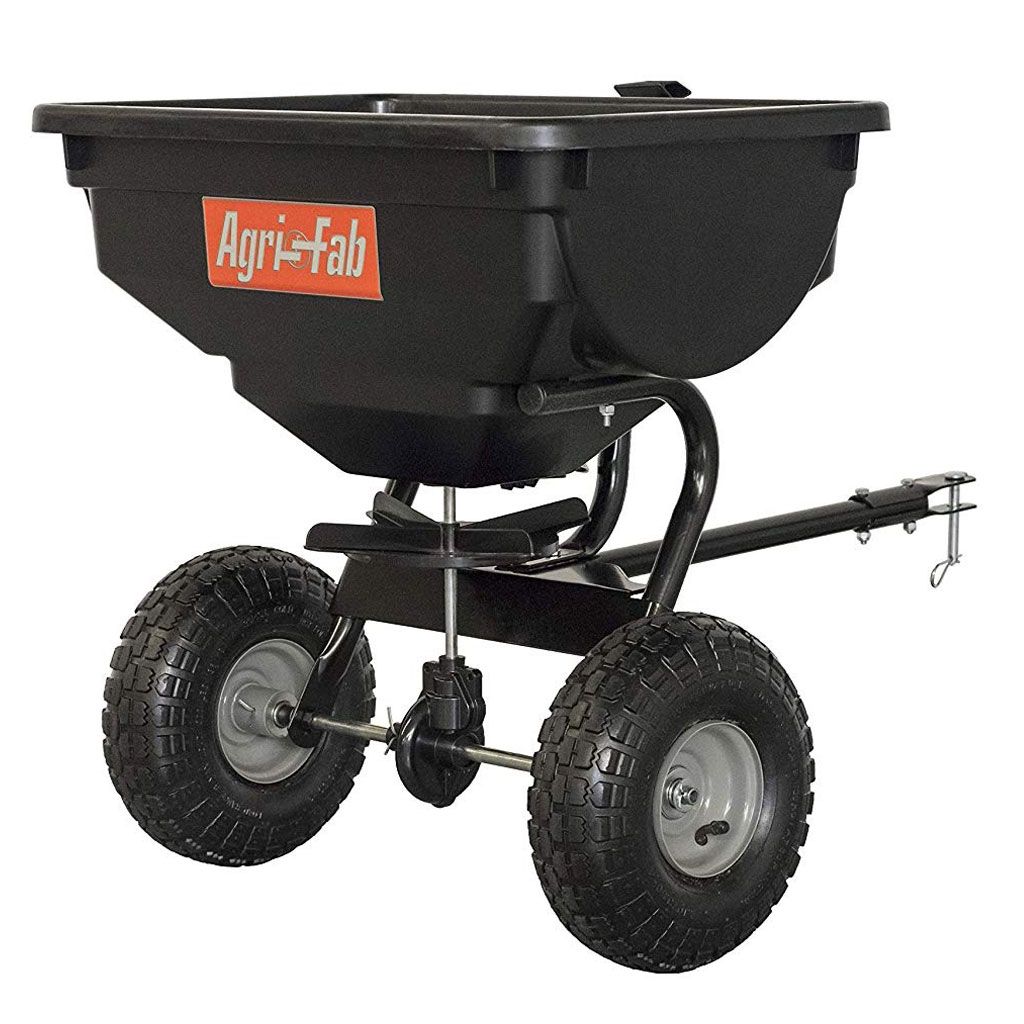

• Description: Agri-Fab Tow Behind 85 LB (38.55 KG) Broadcast Spreader
• Editorial: The Agri-Fab 85 lb. (38.55 kg) broadcast spreader spreads seed, fertiliser and weed
• control evenly and in less time. This spreader is ideal for lawns of approximately
• 1/4 acre (14,000 sq. ft. / 1,300 sq. metres) and is designed to evenly fertilize
• your lawn with nutrients it needs for growth, colour, root strength and overall
• health.
• OPERATION
• Note: Do not use powdered lawn chemicals. They do not give a satisfactory or
• consistent broadcast pattern.
• 1. Estimate the size of the area to be covered and calculate the amount of material
• required.
• 2. Set the adjustable stop according to the flow setting recommended in the
• application chart (the chart is contained in the product manual enclosed with your
• spreader). Also refer to the instructions on the packaging for the material to be
• spread.
• 3. The application chart is calculated for light to heavy coverage at a vehicle
• speed of 3 mph (4.82 kph), or 100 ft. (30.48 m) in 23 seconds. Do not exceed 3 mph
• (4.82 kph).
• 4. Make sure the control lever is in the "OFF" position.
• 5. Fill the hopper, breaking up any lumpy fertilizer.
• 6. Start the spreader in motion and then pull the control lever forward against the
• adjustable stop to the "ON" position.
• 7. Always move the control lever to the "OFF" position before turning or stopping.
• 8. To ensure uniform coverage, make each pass so that the broadcast pattern
• slightly overlaps the pattern from the previous pass. The approximate broadcast
• widths for different materials are shown in the application chart contained in the
• product manual included with your spreader.
• 9. For rectangular areas, make two passes across the short ends to create turning
• areas. For non-rectangular areas, make two passes around the entire border.
• 10. When broadcasting weed control fertilizers, make sure the broadcast pattern
• does not hit evergreen trees, flowers or shrubs.
• Replaces OEM: Agri-Fab 45-0530
• Carton Size: (inches) 22.3" x 16.3" x 14.5" (L x W x H)
• Carton Size: (mm) 566.42 mm x 414.02 mm x 368.3 mm (L x W x H)
• Height: (inches) 25"
• Height: (mm) 635 mm
• Length: (in) 33"
• Length: (mm) 838.2 mm
• Weight: 18 lbs. (8.16 kg)
• Width: (inches) 22"
• Width: (mm) 558.8 mm
• Wheel(s): Pneumatic
• Size: 10" (254 mm)
• Tread Pattern: Block
• Fits: Ideal for use with many brands of lawn tractor type ride-on lawn mowers including
• but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional
• Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT,
• LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered
• GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray,
• Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower.
• Features: Versatile - Easily and quickly attaches to most lawn tractors.
• Coverage: 85 lb (38.55 kg) capacity covers approximately 1/4 acre (14,000 sq. ft. /
• 1,300 sq. metres) depending on the material used and speed of application.
• Durable: An enclosed gearbox and rust-proof poly hopper increases product life.
• Manoeuvrable: Pneumatic tyres roll over lawns easily.
• Features: Versatile - Easily and quickly attaches to most lawn tractors.
• Coverage: 85 lb (38.55 kg) capacity covers approximately 1/4 acre (14,000 sq. ft. /
• 1,300 sq. metres) depending on the material used and speed of application.
• Durable: An enclosed gearbox and rust-proof poly hopper increases product life.
• Manoeuvrable: Pneumatic tyres roll over lawns easily.
• Standard Pack Quantity: 1
• to fully understand the safety requirements and operation instructions.
• SAFETY INFORMATION
• 1. Read the information on the chemical package for instructions and cautions on
• handling and applying.
• 2. Wear eye and hand protection when handling and when applying lawn or garden
• chemicals.
• 3. Never allow children to operate the vehicle or spreader.
• 4. Do not use the spreader to transport people.
• 5. Before using the spreader for the first time, ensure that you are completely
• familiar with the functions of the towing vehicle.
• 6. The towing vehicle performs differently when it is pulling a load.
• – Do not drive too close to ditches or other obstacles.
• – Do not drive on steep inclines.
• 7. Always begin with the transmission in first (low) gear and with the engine at
• low speed, and gradually increase speed as conditions permit. Never go faster than
• 4.82 kph (3 mph).
• Brand: Agri-Fab
• Product Line: Broadcast spreader, spreader - broadcast, tow-behind broadcast spreader,
• Please Note: Please read the product manual included with your broadcast spreader prior to use
• to fully understand the safety requirements and operation instructions.
• SAFETY INFORMATION
• 1. Read the information on the chemical package for instructions and cautions on
• handling and applying.
• 2. Wear eye and hand protection when handling and when applying lawn or garden
• chemicals.
• 3. Never allow children to operate the vehicle or spreader.
• 4. Do not use the spreader to transport people.
• 5. Before using the spreader for the first time, ensure that you are completely
• familiar with the functions of the towing vehicle.
• 6. The towing vehicle performs differently when it is pulling a load.
• – Do not drive too close to ditches or other obstacles.
• – Do not drive on steep inclines.
• 7. Always begin with the transmission in first (low) gear and with the engine at
• low speed, and gradually increase speed as conditions permit. Never go faster than
• 4.82 kph (3 mph).
• Brand: Agri-Fab
• Product Line: Broadcast spreader, spreader - broadcast, tow-behind broadcast spreader,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Agri-Fab,
• Tow Behind 85 LB (38.55 KG) Broadcast Spreader


• Editorial: The Agri-Fab 85 lb. (38.55 kg) broadcast spreader spreads seed, fertiliser and weed control evenly and in less time. This spreader is ideal for lawns of approximately 1/4 acre (14,000 sq. ft. / 1,300 sq. metres) and is designed to evenly fertilize your lawn with nutrients it needs for growth, colour, root strength and overall health.


• Features:
  • Versatile - Easily and quickly attaches to most lawn tractors.
• • Coverage: 85 lb (38.55 kg) capacity covers approximately 1/4 acre (14,000 sq. ft. / 1,300 sq. metres) depending on the material used and speed of application.
• • Durable: An enclosed gearbox and rust-proof poly hopper increases product life.
• • Manoeuvrable: Pneumatic tyres roll over lawns easily.



• Agri-Fab

• Fits: Ideal for use with many brands of lawn tractor type ride-on lawn mowers including but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT, LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray, Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower.

• Replaces OEM: 45-0530

•

• Length: 33", 838.2 mm

• Width: 22", 558.8 mm

• Height: 25", 635 mm

• Nett Weight: 18 lb, 8.16 kg

• Carton Size: 22.3" x 16.3" x 14.5", 566.42 mm x 414.02 mm x 368.3 mm (L x W x H)

• Tread Pattern: Block

• Wheels / Tyres: Pneumatic 10", 254 mm

•

• Operating Instructions:
  OPERATION:
• Note: Do not use powdered lawn chemicals. They do not give a satisfactory or consistent broadcast pattern.
• 1. Estimate the size of the area to be covered and calculate the amount of material required.
• 2. Set the adjustable stop according to the flow setting recommended in the application chart (the chart is contained in the product manual enclosed with your spreader). Also refer to the instructions on the packaging for the material to be spread.
• 3. The application chart is calculated for light to heavy coverage at a vehicle speed of 3 mph (4.82 kph), or 100 ft. (30.48 m) in 23 seconds. Do not exceed 3 mph (4.82 kph).
• 4. Make sure the control lever is in the "OFF" position.
• 5. Fill the hopper, breaking up any lumpy fertilizer.
• 6. Start the spreader in motion and then pull the control lever forward against the adjustable stop to the "ON" position.
• 7. Always move the control lever to the "OFF" position before turning or stopping.
• 8. To ensure uniform coverage, make each pass so that the broadcast pattern slightly overlaps the pattern from the previous pass. The approximate broadcast widths for different materials are shown in the application chart contained in the product manual included with your spreader.
• 9. For rectangular areas, make two passes across the short ends to create turning areas. For non-rectangular areas, make two passes around the entire border.
• 10. When broadcasting weed control fertilizers, make sure the broadcast pattern does not hit evergreen trees, flowers or shrubs.


• Standard Pack Quantity: 1

• Please Note: Please Note: Please read the product manual included with your broadcast spreader prior to use to fully understand the safety requirements and operation instructions.
• SAFETY INFORMATION:
• 1. Read the information on the chemical package for instructions and cautions on handling and applying.
• 2. Wear eye and hand protection when handling and when applying lawn or garden chemicals.
• 3. Never allow children to operate the vehicle or spreader.
• 4. Do not use the spreader to transport people.
• 5. Before using the spreader for the first time, ensure that you are completely familiar with the functions of the towing vehicle.
• 6. The towing vehicle performs differently when it is pulling a load.
• – Do not drive too close to ditches or other obstacles.
• – Do not drive on steep inclines.
• 7. Always begin with the transmission in first (low) gear and with the engine at low speed, and gradually increase speed as conditions permit. Never go faster than 4.82 kph (3 mph).
