Extended Description

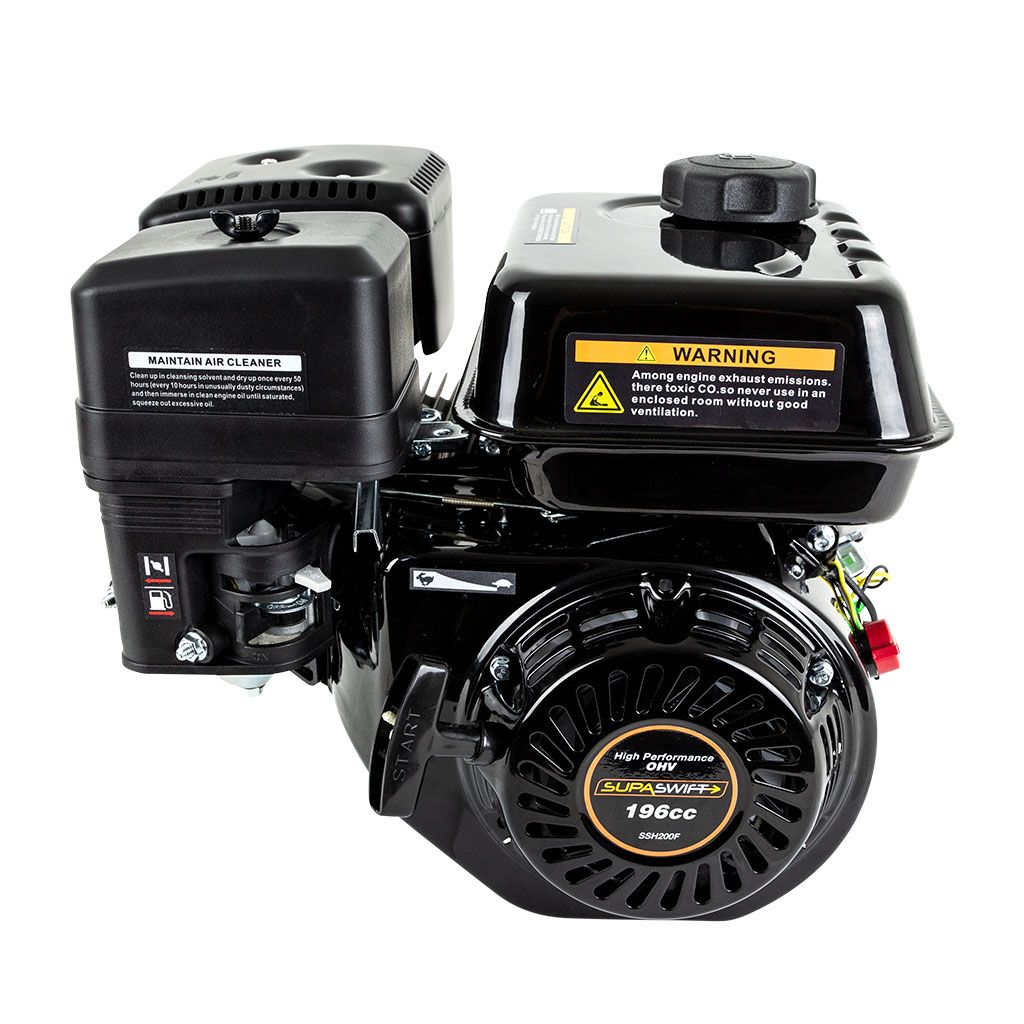

• Description: SupaSwift SSH200F, 4.1 kw, 196 cc Single Cylinder OHV Horizontal Shaft Engine
• Editorial: The SupaSwift SSH200F is a quality small engine at an affordable price. With
• premium features such as a forged crankshaft, metal cam shaft, cast iron cylinder
• liner, OHV design, low oil safety cut-out and with proven reliability this engine
• is ready to be fitted to a variety of outdoor power equipment to provide years of
• trouble free service.
• Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms
• and conditions including all limitations and exclusions please refer to the
• warranty section on our web site or contact our friendly sales team.
• Features: Cast-Iron cylinder liner.
• Forged crankshaft.
• Metal camshaft.
• OHV design.
• Low oil cut- out protection.
• Proven reliability.
• Conforms to EU5.
• Engine: SupaSwift SSH200F (SS-H200-F).
• Type: Air cooled, single cylinder OHV, horizontal shaft, normally aspirated 4 stroke
• petrol engine.
• Displacement: 196 cc.
• Bore x Stroke: 68 mm x 54 mm.
• Cylinder: Single cylinder with cast -iron cylinder liner.
• Compression Ratio: 8.5 : 1.
• Net Power: 4.1 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
• Net Torque: 12.4 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
• Engine (cc): 196 cc
• Crankshaft: Forged crankshaft
• Crankshaft Diameter: (inches) 3/4"
• Crankshaft Diameter: (mm) 19.05 mm
• PTO Shaft Type: 3/4" or 19.05 mm, parallel keyway.
• PTO Shaft Rotation: Anti Clockwise (from the PTO side).
• Cooling: Air cooled.
• Governor: Centrifugal mass type.
• Carburettor: Butterfly type.
• Choke: Manual.
• Idle Speed: 1800 ± 150 rpm / min.
• Starter: Recoil Start.
• Ignition: Transistorised Magneto Ignition.
• Lubrication: Splash.
• Oil Capacity: 600 ml (Please use 10W/40 oil).
• Fuel: Unleaded (minimum of 90 octane).
• Fuel Capacity: 3.6 Litres.
• Fuel Filter: In-tank fuel filter.
• Air Filter: Paper element with foam outer.
• Exhaust/Muffler: Yes.
• Dry Weight: (lb) 35.27 lb.
• Dry Weight: (kg) 16 kg.
• International Standard: Conforms to EU5.
• Standard Pack Quantity: 1
• Please Note: Specifications subject to change without notice. The power rating of this engine is
• the net power output tested on a production engine and measured in accordance with
• SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
• Brand: SupaSwift,
• Product Line: Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Supaswift,
• SSH200F, 4.1 kw, 196 cc Single Cylinder OHV Horizontal Shaft Engine


• Editorial: The SupaSwift SSH200F is a quality small engine at an affordable price. With premium features such as a forged crankshaft, metal cam shaft, cast iron cylinder liner, OHV design, low oil safety cut-out and with proven reliability this engine is ready to be fitted to a variety of outdoor power equipment to provide years of trouble free service.


• Features:
  • Cast-Iron cylinder liner.
• • Forged crankshaft.
• • Metal camshaft.
• • OHV design.
• • Low oil cut- out protection.
• • Proven reliability.
• • Conforms to EU5.



• Supaswift

•

• Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms and conditions including all limitations and exclusions please refer to the warranty section on our web site or contact our friendly sales team.

• Engine: SupaSwift SSH200F (SS-H200-F)

• Type: Air cooled, single cylinder OHV, horizontal shaft, normally aspirated 4 stroke petrol engine

• Engine (cc): 196 cc

• Cylinder: Single cylinder with cast -iron cylinder liner

• Bore x Stroke: 68 mm x 54 mm

• Displacement: 196 cc

• Compression Ratio: 8.5 : 1

• Cooling: Air cooled

• Net Power: 4.1 kW @ 3600 rpm. (Measured in accordance with SAE J1349)

• Net Torque: 12.4 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)

• Ignition: Transistorised Magneto Ignition

• Crankshaft: Forged crankshaft

• Crankshaft Diameter: 3/4", 19.05 mm

• PTO Shaft Type: 3/4" or 19.05 mm, parallel keyway

• PTO Shaft Rotation: Anti Clockwise (from the PTO side)

• Air Filter: Paper element with foam outer

• Starter: Recoil Start

• Exhaust/Muffler: Yes

• Fuel: Unleaded (minimum of 90 octane)

• Fuel Filter: In-tank fuel filter

• Governor: Centrifugal mass type

• Carburettor: Butterfly type

• Choke: Manual

• Idle Speed: 1800 ± 150 rpm / min

• Lubrication: Splash

• Oil Type: SAE 10W/40

• Oil Capacity: 600 ml

• Dry Weight: 35.27 lb, 16 kg

•

• Standard Pack Quantity: 1

• International Standard: Conforms to EU5

• Please Note: Specifications subject to change without notice. The power rating of this engine is the net power output tested on a production engine and measured in accordance with SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
