Extended Description

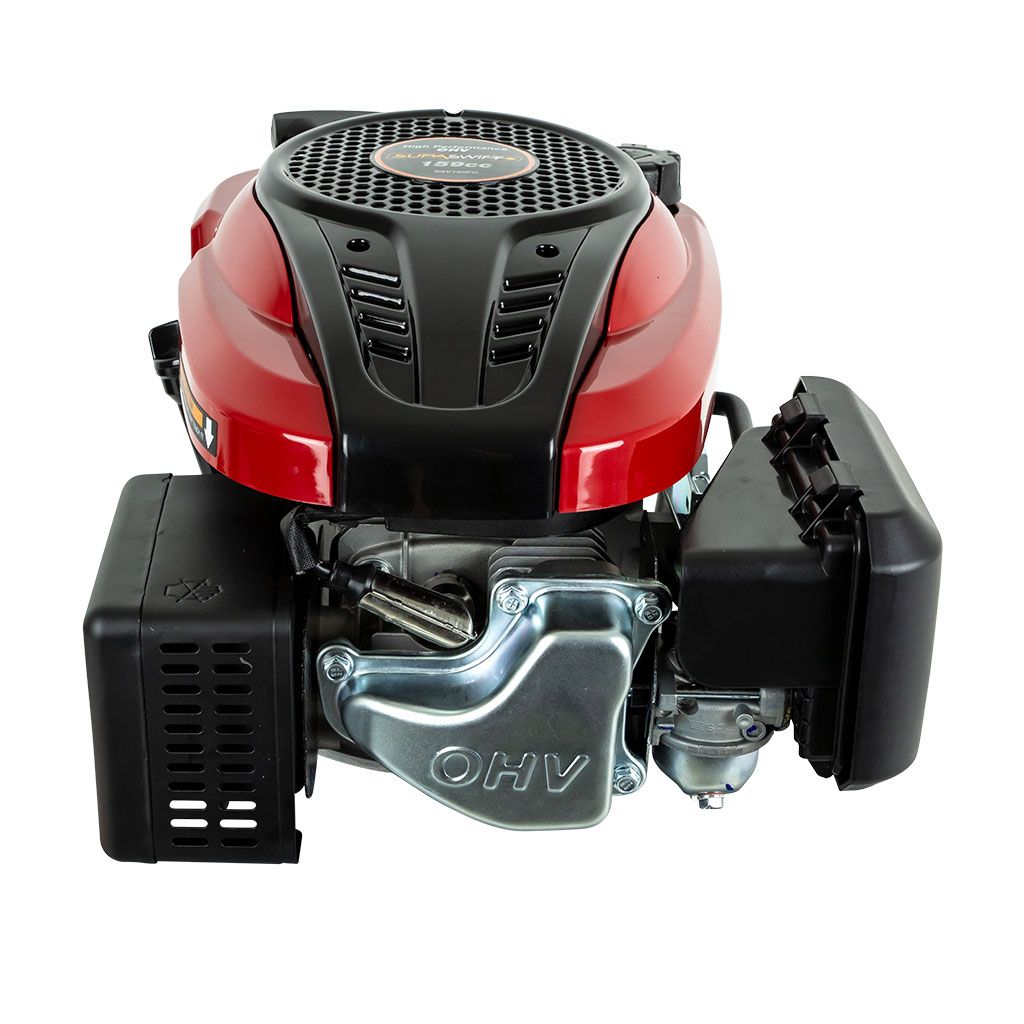

• Description: SupaSwift SSV160FC, 2.7 kw, 159 cc Single Cylinder OHV Vertical Shaft Engine
• Editorial: The SupaSwift SSV160FC is a quality small engine packed with premium features such
• as a forged crankshaft, metal cam shaft with nylon gear, cast iron cylinder liner,
• OHV design and with proven reliabilty this engine is ready to be fitted to a
• variety of out doorpower equipment includind walk-behind lawn mowers to provide
• years of trouble free service.
• Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms
• and conditions including all limitations and exclusions please refer to the
• warranty section on our web site or contact our friendly sales team.
• Features: Cast-Iron cylinder liner.
• Forged crankshaft.
• Metal camshaft with nylon gear.
• OHV design.
• Auto choke.
• Dual stage air filter.
• Proven reliability.
• Conforms to Euro 5.
• Engine: SupaSwift SSV160FC.
• Type: Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
• engine.
• Displacement: 159 cc.
• Bore x Stroke: 65 mm x 48 mm
• Cylinder: Single cylinder with cast -iron cylinder liner.
• Compression Ratio: 7.6:1
• Net Power: 3.0 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
• Net Torque: 8.3 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
• Engine (cc): 159 cc
• Crankshaft: Forged crankshaft
• Crankshaft Diameter: (inches) 7/8"
• Crankshaft Diameter: (mm) 22.22 mm
• PTO Shaft Type: 7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key.
• PTO Shaft Rotation: Anti-clockwise (from the PTO side)
• Cooling: Air cooled.
• Governor: Centrifugal mass type.
• Carburettor: Butterfly type.
• Choke: Auto choke.
• Idle Speed: 2200 ± 150 rpm / min.
• Starter: Recoil Start.
• Ignition: Transistorised Magneto Ignition.
• Lubrication: Splash.
• Oil Capacity: 550 ml (please use SAE10W/40 oil).
• Fuel: Unleaded
• Fuel Capacity: 1.0 Litre
• Fuel Filter: Yes, in-tank type fuel filter.
• Air Filter: Pleated paper cartridge type with a foam pre-filter.
• Exhaust/Muffler: Yes, comes with muffler and heat shield.
• Dry Weight: (lb) 26.01 lb.
• Dry Weight: (kg) 11.8 kg
• International Standard: Conforms to EU5
• Standard Pack Quantity: 1
• Please Note: Specifications subject to change without notice. The power rating of this engine is
• the net power output tested on a production engine and measured in accordance with
• SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
• Brand: SupaSwift,
• Product Line: Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Supaswift,
• SSV160FC, 2.7 kw, 159 cc Single Cylinder OHV Vertical Shaft Engine


• Editorial: The SupaSwift SSV160FC is a quality small engine packed with premium features such as a forged crankshaft, metal cam shaft with nylon gear, cast iron cylinder liner, OHV design and with proven reliability this engine is ready to be fitted to a variety of outdoor power equipment including walk-behind lawn mowers to provide years of trouble free service.


• Features:
  • Cast-Iron cylinder liner.
• • Forged crankshaft.
• • Metal camshaft with nylon gear.
• • OHV design.
• • Auto choke.
• • Dual stage air filter.
• • Proven reliability.
• • Conforms to Euro 5.



• Supaswift

•

• Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms and conditions including all limitations and exclusions please refer to the warranty section on our web site or contact our friendly sales team.

• Engine: SupaSwift SSV160FC

• Type: Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol engine

• Engine (cc): 159 cc

• Cylinder: Single cylinder with cast -iron cylinder liner

• Bore x Stroke: 65 mm x 48 mm

• Displacement: 159 cc

• Compression Ratio: 7.6:1

• Cooling: Air cooled

• Net Power: 3.0 kW @ 3600 rpm. (Measured in accordance with SAE J1349)

• Net Torque: 8.3 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)

• Ignition: Transistorised Magneto Ignition

• Crankshaft: Forged crankshaft

• Crankshaft Diameter: 7/8", 22.22 mm

• PTO Shaft Type: 7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key.

• PTO Shaft Rotation: Anti-clockwise (from the PTO side)

• Air Filter: Pleated paper cartridge type with a foam pre-filter

• Starter: Recoil Start

• Exhaust/Muffler: Yes, comes with muffler and heat shield

• Fuel: Unleaded

• Fuel Filter: Yes, in-tank type fuel filter

• Governor: Centrifugal mass type

• Carburettor: Butterfly type

• Choke: Auto choke

• Idle Speed: 2200 ± 150 rpm / min

• Lubrication: Splash

• Oil Type: SAE 10W/40

• Oil Capacity: 550 ml

• Dry Weight: 26.01 lb, 11.8 kg

•

• Standard Pack Quantity: 1

• International Standard: Conforms to EU5

• Please Note: Specifications subject to change without notice. The power rating of this engine is the net power output tested on a production engine and measured in accordance with SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
