• Description:
• Kawasaki,

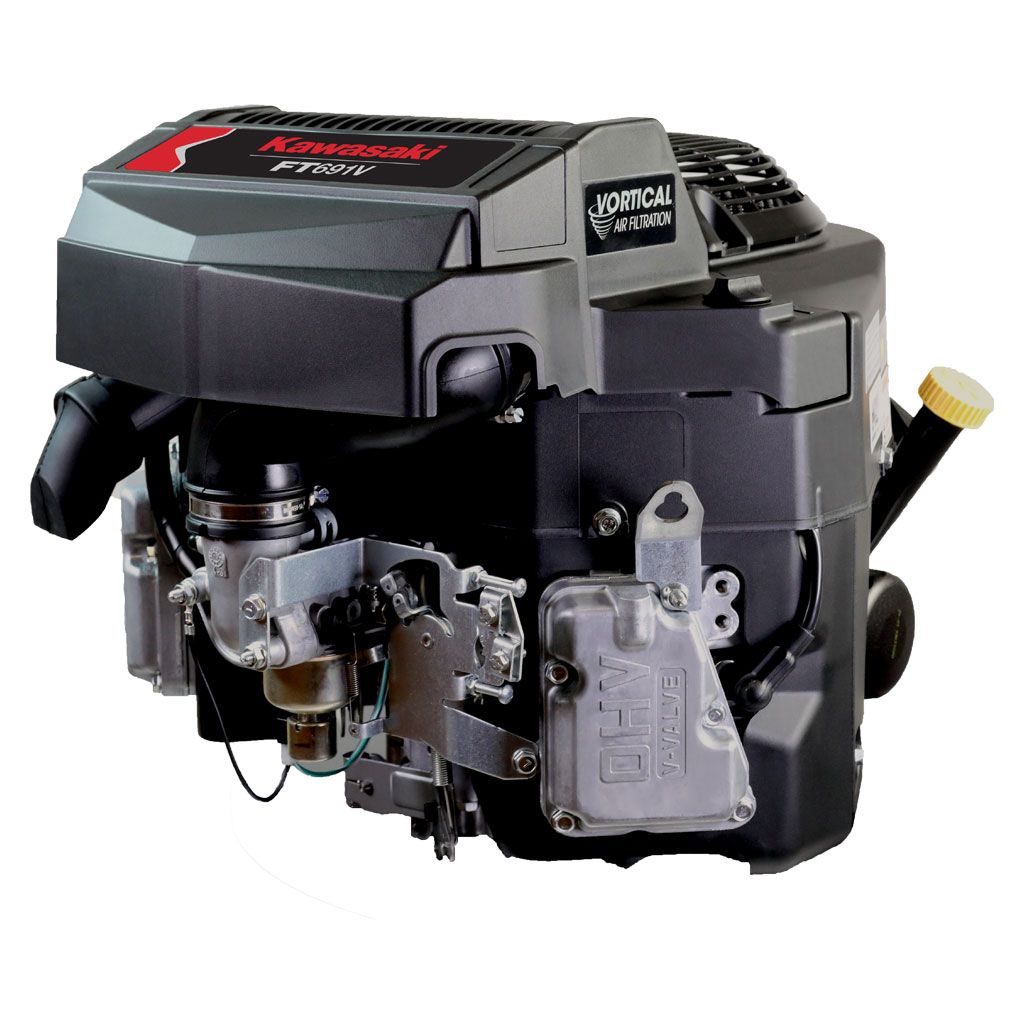

• FT691V-S00-S, 22.0 hp (16.4 kW) Vertical Shaft Engine With A 1 1/8" x 108 mm Crankshaft


• Editorial: The new FT Series engines with patented Vortical air filtration blaze new trails.
• Kawasaki FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.


• Features:
  • 90° V-twin.
• • High-efficiency, centrifugal air intake system
• • Dual-element air filtration with reinforced filter
• • Large, easy-to-access integrated clean-out ports
• • Pressurized lubrication system.
• • Electronic spark ignition.
• • Automatic compression release.
• • Internally vented carburettor with fuel shut-off solenoid
• • Cast-iron cylinder liners.
• • Rotating metal grass chopper screen



• Kawasaki

•

• Type: Forced air cooled, 90 degree V-twin, normally aspirated petrol engine

• Engine (cc): 726 cc

• Horsepower: 22.0 hp (16.4 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)

• Cylinder: Two, 90° V-twin

• Cylinder Liner: Cast-iron cylinder liners

• Bore x Stroke: 3.1 x 3.0 in. (78 x 76 mm)

• Displacement: 726 cc (44.3 cu. in.)

• Compression Ratio: 8.2:1

• Cooling: Forced air cooled. Fly-wheel fan

• Net Power: Maximum Power 22.0 hp (16.4 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)

• Net Torque: Maximum Torque 39.6 ft-lbs (53.6 N·m) at 2,400 rpm

• Decompressor: Automatic compression release

• Ignition: Electronic spark ignition

• Crankshaft Diameter: 1 1/8" x 108 mm (28.5 X 108 mm)

• Air Filter: Dual-element air filtration with reinforced filter

• Charging System: 12-volt

• Starter: 12-volt

• Exhaust/Muffler: No

• Fuel: Unleaded fuel - maximum of 10% ethanol in fuel

• Fuel Filter: Yes, replaceable, automotive-type

• Governor: Mechanical

• Oil Filter: Yes, spin-on engine oil filter

• Oil Capacity: Oil Capacity w/filter 2.2 U.S. qt ( 2.1 litres)

• Dry Weight: 96.3 lbs, 43.7 kg

•

• Standard Pack Quantity: 1

• International Standard: *PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.*

• Please Note: Specifications subject to change without notice.
