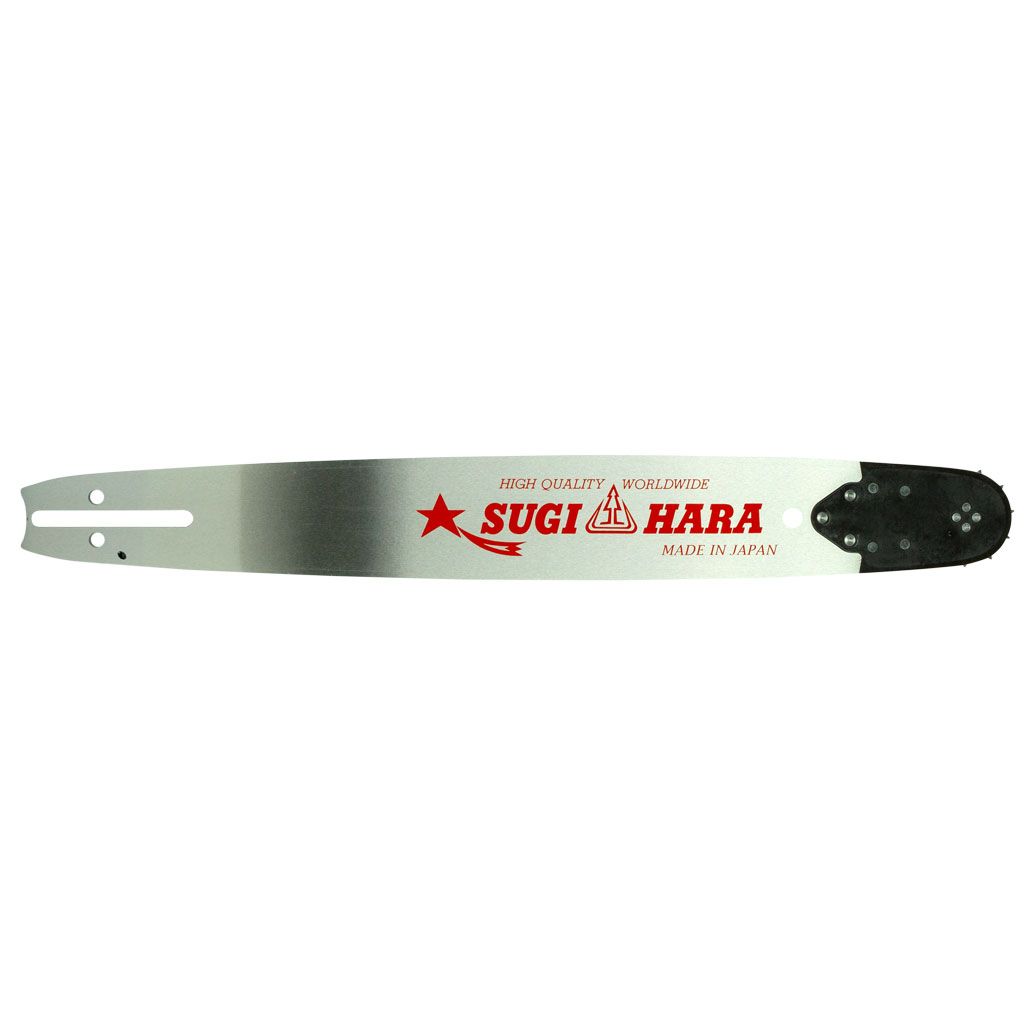

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 16 #38 BB

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

GAFBB1638RSP

PROKUT PLATINUM SUGI HARA

SPROCKET NOSE BAR 16 #38 BB

Brand: FORESTRY - GA
Qty:

Extended Description

  • Description: PROKUT PLATINUM SUGIHARA 16" x .325" x .058" x 66 DL, 67DL Or 68DL BB Mount, Solid
  • Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
  • Replaces OEM: Oregon 168RNBK095
  • Sugihara - Diatop BC3T-8J40-A
  • Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
  • Manufactured from a single piece of steel, featuring superior durability and
  • stiffness characteristics.
  • High durability sprocket nose.
  • Polished lacquered finish.
  • Nose fastens with three rivets, and is securely held by wide and strong overlapping
  • ears.
  • The long sprocket nose takes most of the abuse, and minimizes wear to the bars
  • body.
  • Super tough steel, heat treated up to 4 times on different parts of the guide bar,
  • provides superior bar-body strength and tough rails with excellent resistance to
  • wear and chipping.
  • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
  • Made in Japan.
  • All PROKUT guide bars are reversible for longer life.
  • Length: (in): 16"
  • Length: (cm): 40 cm
  • Pitch: .325"
  • Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
  • Chain / Cutter Type: 38S / Semi-Chisel or 38F / Full-Chisel
  • Bar Mount Type: BB
  • Gauge: .058"
  • Drive Link Count: 66 (mostly), 67 (Some) Or 68 DL (some), [as detailed in model fitment]
  • Teeth: 11 Tooth sprocket nose
  • Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
  • Fits: Alpina 460, 510, 540 and 550 model chainsaws (These models use a 66 drive link
  • chain).
  • Fits: Dolmar 109, 109HS, 110, 110i, 111, 111i, 115, 115i, PS-410, PS-411, PS-460, PS-510,
  • PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws (These models
  • use a 66 drive link chain). Note: Please check your saw carefully prior to
  • ordering, some of the above saw models were also released fitted with a 3/8" pitch
  • chain. PS410 After Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.
  • Fits: Dolmar 109, 109HS, 110, 110i, 111, 111i, 115, 115i, PS-410, PS-411, PS-460, PS-510,
  • PS-540, PS-5000 D, PS-5100 S, PS-5105 and PS-5105 H model chainsaws (These models
  • use a 66 drive link chain). Note: Please check your saw carefully prior to
  • ordering, some of the above saw models were also released fitted with a 3/8" pitch
  • chain. PS410 After Serial # 34576 & PS411 After Serial # 33571 use NARROW CUT only.
  • Fits: Fairmont Hydraulic 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513 and
  • LIMBLOPPER model chainsaws (These models use a 66 drive link chain).
  • Fits: Efco 141SP, 147, 152, 156, 165 and MT 5200 model chainsaws (These models use a 66
  • drive link chain).
  • 340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,
  • 353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,
  • 435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e
  • RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
  • 555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,
  • 1800 Electric and H318 model chainsaws (These models use a 66 drive link chain).
  • Fits: Jonsered 45, 49, 50, 51, 52, 370, 410, 420, 425, 435, 450, 451, 455, 510, 521, 525,
  • 535, 2050, 2050 TURBO, 2051, 2054, 2055, 2149, 2149 TURBO, CS2141, CS2141S, CS2145,
  • CS2145S, CS2149 TURBO, CS2150, CS2152 W, CS2153, CS2156, CS2159, CS2159C, CS2159WH,
  • CS2163, CS2240, CS2245, CS2250, CS2250S and CS2255 model chainsaws (These models
  • use a 66 drive link chain). Note: Please check your saw carefully prior to
  • ordering, some of the above saw models were also released fitted with a 3/8" pitch
  • chain.
  • Fits: Fairmont Hydraulic 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513 and
  • LIMBLOPPER model chainsaws (These models use a 66 drive link chain).
  • saw carefully prior to ordering, some of the above saw models were also released
  • fitted with a 3/8" pitch chain.
  • Fits: Makita DCS410, DCS411, DCS430 model chainsaws (These models use a 66 drive link
  • chain). Note: DCS410 After Serial # 34576 & DCS411 After Serial # 33661 use NARROW
  • CUT only.
  • Fits: Husqvarna 33, 40, 41, 42, 44, 45, 49, 50, 51, 55, 55 RANCHER, 57, 133, 140, 154,
  • 234, 238, 240, 242, 242 XP, 246, 254, 254 XP, 257, 261, 262, 262 XP, 336, 339 XP,
  • 340, 340 e, 345, 345 e, 346, 346 XP, 346 XP E-TECH, 346 XPG, 350, 350 e, 351, 353,
  • 353 E-TECH, 353 G E-TECH, 357 XP, 357 XPG, 359, 359 E-TECH, 360, 362, 362XP, 435,
  • 435 e, 440 e, 444, 445, 445 e, 450, 450 50TH ANNIVERSARY, 450 e, 455, 455 e
  • RANCHER, 455 RANCHER, 460, 460 RANCHER, 466, 543 XP, 543 XPG, 545, 550 XP, 550 XPG,
  • 555, 560 XP, 560 XPG, 1200 Electric, 1400 Electric, 1500 Electric, 1600 Electric,
  • 1800 Electric and H318 model chainsaws (These models use a 66 drive link chain).
  • Fits: MTD 152 model chainsaws (These models use a 68 drive link chain).
  • Fits: Jonsered 45, 49, 50, 51, 52, 370, 410, 420, 425, 435, 450, 451, 455, 510, 521, 525,
  • 535, 2050, 2050 TURBO, 2051, 2054, 2055, 2149, 2149 TURBO, CS2141, CS2141S, CS2145,
  • CS2145S, CS2149 TURBO, CS2150, CS2152 W, CS2153, CS2156, CS2159, CS2159C, CS2159WH,
  • CS2163, CS2240, CS2245, CS2250, CS2250S and CS2255 model chainsaws (These models
  • use a 66 drive link chain). Note: Please check your saw carefully prior to
  • ordering, some of the above saw models were also released fitted with a 3/8" pitch
  • chain.
  • Fits: Opem K1 and K2 model chainsaws (These models use a 66 drive link chain).
  • Fits: Makita DCS 430, DCS 431, DCS 460, DCS 510, DCS 520i, DCS 540, DCS5121 and DCS 5200i
  • model chainsaws (These models use a 66 drive link chain). Note: Please check your
  • saw carefully prior to ordering, some of the above saw models were also released
  • fitted with a 3/8" pitch chain.
  • Fits: Partner 360, 400, P-360, P-400, P-450, P-500 and P-5000 model chainsaws (These
  • models use a 66 drive link chain).
  • Fits: Makita DCS410, DCS411, DCS430 model chainsaws (These models use a 66 drive link
  • chain). Note: DCS410 After Serial # 34576 & DCS411 After Serial # 33661 use NARROW
  • CUT only.
  • Fits: Poulan / Poulan Pro 325, PP5118 model chainsaws (These models use a 66 drive link
  • chain).
  • Fits: McCulloch 1849 AV, 2046 AV, 2049 AV, 4600, 4700, 4900, 5000, 5500, MAC 2818 AV, MS
  • 1846 AV, MS 1849 AV, MS 1850, MS 2046 AV, MS 2046 AVCC, MS 2049, MS 2049 AV, MS
  • 2049 AVCC, MS2050, PM 1845 AV, Pro Mac: 40, 46. PM4300, PM4700, PM5000, PM5200,
  • SILVER EAGLE: 2818, 3020 and TIMBER BEAR 20 (later models) model chainsaws [These
  • models use a 66 drive link chain].
  • Fits: Ryobi RFS4518 and RFS5418 model chainsaws (These models use a 66 drive link chain).
  • Fits: MTD 152 model chainsaws (These models use a 68 drive link chain).
  • Fits: Solo 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651 SP, 652,
  • 654, 656 and 656 SP model chainsaws (These models use a 67 drive link chain).
  • Fits: Oleo-Mac 925F, 938, 940C, 941, 941 CX, 942, 945, 946, 947, 947F, 950, 951, 952, 956
  • and 962 model chainsaws (These models use a 66 drive link chain).
  • models were also released fitted with a 3/8" pitch chain.
  • Fits: Tanaka ECV 5601 model chainsaws (These models use a 66 drive link chain).
  • Fits: Opem K1 and K2 model chainsaws (These models use a 66 drive link chain).
  • chainsaws (These models use a 66 drive link chain).
  • Fits: Parklander GL4500M-18 model chainsaws (These models use a 66 drive link chain).
  • Fits: Partner 360, 400, P-360, P-400, P-450, P-500 and P-5000 model chainsaws (These
  • models use a 66 drive link chain).
  • Fits: Pioneer 1074, P-21, P-26 and P-28 model chainsaws (These models use a 66 drive link
  • chain).
  • Fits: Poulan / Poulan Pro 325, PP5118 model chainsaws (These models use a 66 drive link
  • chain).
  • Fits: Redmax G390, G450AVS, G455AVS, G5000, G5000AVS and G5300 model chainsaws (These
  • models use a 66 drive link chain).
  • Please Note: Use with our semi-chisel chain loop part number GAF38S066DL or our full-chisel
  • chain loop part number GAF38F066DL for 66 drive link applications. Use with our
  • semi-chisel chain loop part number GAF38S067DL or our full-chisel chain loop part
  • number GAF38F067DL for 67 drive link applications. Use with our semi-chisel chain
  • loop part number GAF38S068DL or our full-chisel chain loop part number GAF38F068DL
  • for 68 drive link applications. For a standard solid professional replaceable
  • sprocket nose guide bar option use our part number GAFBB1638RS. For a
  • semi-professional laminated multi-rivet sprocket nose guide bar option use our part
  • number GAFBB1638PL. For a bar and chain combo option containing a semi-professional
  • laminated multi-rivet sprocket nose guide bar and a 66 DL chain use our part number
  • GAF105712.
  • Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
  • Fits: Ryobi RFS4518 and RFS5418 model chainsaws (These models use a 66 drive link chain).
  • Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
  • nose guide bar,
  • Fits: Sina SCS4500I model chainsaws (These models use a 66 drive link chain).
  • Fits: Solo 613, 614, 631, 632, 634, 638, 639, 641, 644, 645, 647, 650, 651, 651 SP, 652,
  • 654, 656 and 656 SP model chainsaws (These models use a 67 drive link chain).
  • Fits: Stanley Hydraulic CS05 and CS06 model chainsaws (These models use a 66 drive link
  • chain). Note: Please check your saw carefully prior to ordering, some of these saw
  • models were also released fitted with a 3/8" pitch chain.
  • Fits: Tanaka ECV 5601 model chainsaws (These models use a 66 drive link chain).
  • Fits: Zenoah G390, G450AVS, G455, G455AVS, G500, G5000, G5000AVS and G5300 model
  • chainsaws (These models use a 66 drive link chain).
  • Standard Pack Quantity: 1
  • Please Note: Use with our semi-chisel chain loop part number GAF38S066DL or our full-chisel
  • chain loop part number GAF38F066DL for 66 drive link applications. Use with our
  • semi-chisel chain loop part number GAF38S067DL or our full-chisel chain loop part
  • number GAF38F067DL for 67 drive link applications. Use with our semi-chisel chain
  • loop part number GAF38S068DL or our full-chisel chain loop part number GAF38F068DL
  • for 68 drive link applications. For a standard solid professional replaceable
  • sprocket nose guide bar option use our part number GAFBB1638RS. For a
  • semi-professional laminated multi-rivet sprocket nose guide bar option use our part
  • number GAFBB1638PL. For a bar and chain combo option containing a semi-professional
  • laminated multi-rivet sprocket nose guide bar and a 66 DL chain use our part number
  • GAF105712.
  • Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
  • Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
  • nose guide bar,
