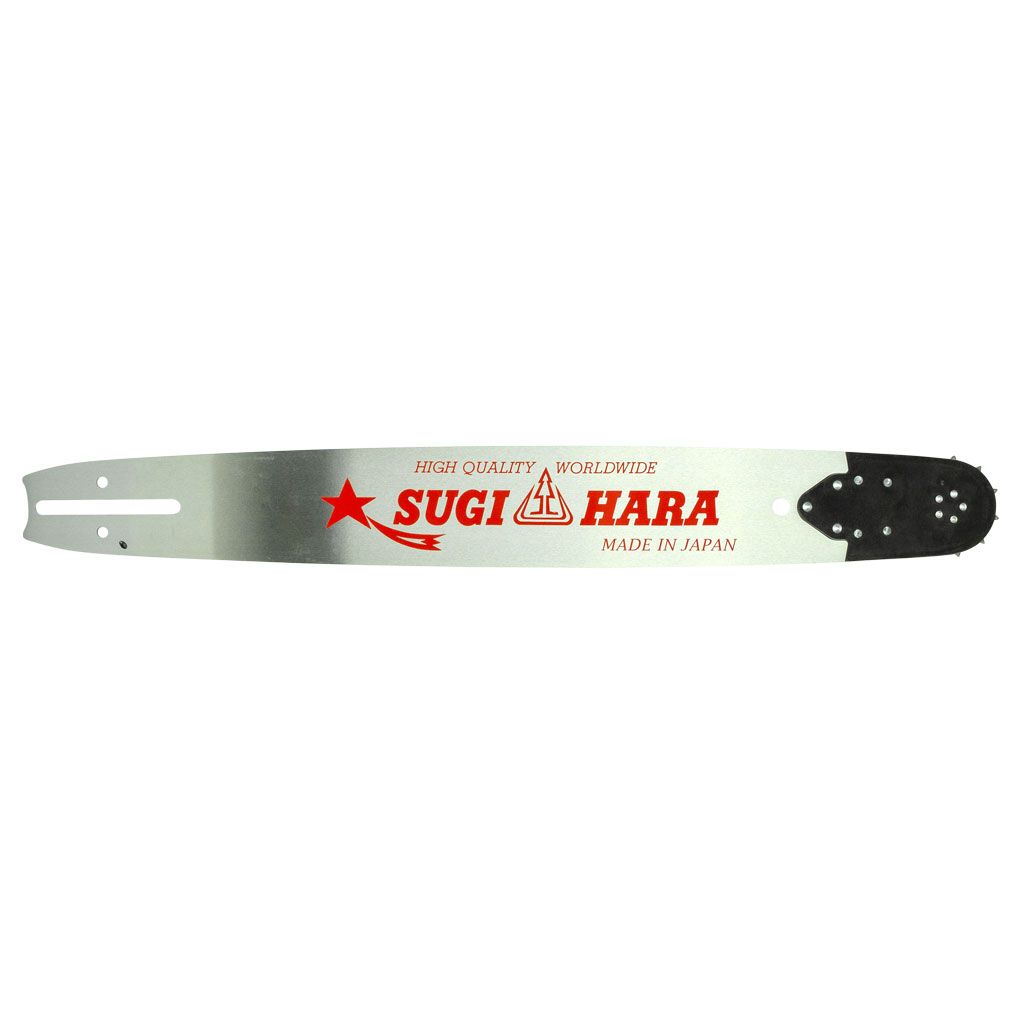

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 28 #48 CB

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

GAFCB2848RSP

PROKUT PLATINUM SUGI HARA

SPROCKET NOSE BAR 28 #48 CB

Brand: FORESTRY - GA
Qty:

Extended Description

  • Description: PROKUT PLATINUM SUGIHARA 28" x 3/8" x .058" x 92 DL Or 93 DL, CB Mount, Solid
  • Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
  • Replaces OEM: Oregon 288RNDD009
  • Replaces OEM: Husqvarna 501 95 69-92,
  • Oregon 288RNDD009,
  • Sugihara - Diatop VT3T-8Q70-A,
  • Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
  • Manufactured from a single piece of steel, featuring superior durability and
  • stiffness characteristics.
  • High durability sprocket nose.
  • Polished lacquered finish.
  • Nose fastens with three rivets, and is securely held by wide and strong overlapping
  • ears.
  • The long sprocket nose takes most of the abuse, and minimizes wear to the bars
  • body.
  • Super tough steel, heat treated up to 4 times on different parts of the guide bar,
  • provides superior bar-body strength and tough rails with excellent resistance to
  • wear and chipping.
  • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
  • Made in Japan.
  • All PROKUT guide bars are reversible for longer life.
  • Length: (in): 28"
  • Length: (cm): 70 cm
  • Pitch: 3/8"
  • Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
  • Chain / Cutter Type: 48S / Semi-Chisel or 48F / Full-Chisel
  • Bar Mount Type: CB
  • Gauge: .058"
  • Drive Link Count: *92 (most) or *93 (some) [*please refer to notes after each fitment application]
  • Teeth: 11 Tooth sprocket nose
  • Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
  • Fits: Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
  • PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
  • PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws. (*Please
  • note these models use a 92 drive link chain).
  • Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP
  • LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385
  • XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,
  • 465 Rancher, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP
  • AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L
  • 66, L 70 and L 77 model chainsaws. (*Please note these models use a 92 drive link
  • chain)
  • Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP
  • LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385
  • XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,
  • 465 Rancher, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP
  • AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L
  • 66, L 70 and L 77 model chainsaws. (*Please note these models use a 92 drive link
  • chain)
  • Fits: Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model
  • chainsaws. (*Please note these models use a 92 drive link chain). Note: Please
  • check your saw carefully prior to ordering, some of these saw models were also
  • released fitted with a .404" pitch chain.
  • Fits: Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071,
  • 2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS
  • 2186, CS 2186 WH and CS 2188 model chainsaws. (*Please note these models use a 92
  • drive link chain). Note: Please check your saw carefully prior to ordering, some of
  • the above saw models were also released fitted with a .404" pitch chain.
  • Fits: Shindaiwa 550, 575, 577 (Please note these models use a 92 drive link chain) and
  • 680, 695, 757, 757C and 757W model chainsaws. (*Please note these models use a 93
  • drive link chain).
  • Fits: Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model
  • chainsaws. (*Please note these models use a 92 drive link chain). Note: Please
  • check your saw carefully prior to ordering, some of these saw models were also
  • released fitted with a .404" pitch chain.
  • Fits: Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. (*Please note these
  • models use a 92 drive link chain). Note: Please check your saw carefully prior to
  • ordering, some of these saw models were also released fitted with a .404" pitch
  • chain.
  • Fits: Shindaiwa 550, 575, 577 (Please note these models use a 92 drive link chain) and
  • 680, 695, 757, 757C and 757W model chainsaws. (*Please note these models use a 93
  • drive link chain).
  • Fits: Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
  • (*Please note these models use a 92 drive link chain).
  • Standard Pack Quantity: 1
  • Please Note: Use with our semi-chisel chain loop part number GAF48S092DL or our full-chisel
  • chain loop part number GAF48F092DL for 92 drive link applications or use with our
  • semi-chisel chain loop part number GAF48S093DL or our full-chisel chain loop part
  • number GAF48F093DL for 93 drive link applications. For a standard PROKUT solid
  • professional replaceable sprocket nose guide bar option use our part number
  • GAFCB2848RS. For an .063" gauge version of this guide bar use our part number
  • GAFCB2843RSP.
  • Replaces our part number OMK288RNDD009
  • Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
  • Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
  • nose guide bar,
  • Standard Pack Quantity: 1
  • Please Note: Use with our semi-chisel chain loop part number GAF48S092DL or our full-chisel
  • chain loop part number GAF48F092DL for 92 drive link applications or use with our
  • semi-chisel chain loop part number GAF48S093DL or our full-chisel chain loop part
  • number GAF48F093DL for 93 drive link applications. For a standard PROKUT solid
  • professional replaceable sprocket nose guide bar option use our part number
  • GAFCB2848RS. For an .063" gauge version of this guide bar use our part number
  • GAFCB2843RSP.
  • Replaces our part number OMK288RNDD009
  • Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
  • Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
  • nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

Extended Description by Producty

  • Description:
  • Dolmar,
  • Husqvarna,
  • Jonsered,
  • Makita,
  • Poulan / Poulan Pro,
  • Shindaiwa,
  • Solo,
  • PROKUT PLATINUM SUGIHARA 28" x 3/8" x .058" x *92 DL Or *93 DL, CB Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

  • Features:
    • Professional premium quality, solid, replaceable sprocket nose guide bar.
  • • Manufactured from a single piece of steel, featuring superior durability and stiffness characteristics.
  • • High durability sprocket nose.
  • • Polished lacquered finish.
  • • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
  • • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
  • • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
  • • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
  • • Made in Japan.
  • • All PROKUT guide bars are reversible for longer life.

  • Dolmar

  • Fits: Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS, PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910, PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws. (*Please note these models use a 92 drive link chain).

  • Husqvarna

  • Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 465 Rancher, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws. (*Please note these models use a 92 drive link chain)

  • Jonsered

  • Fits: Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071, 2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS 2186, CS 2186 WH and CS 2188 model chainsaws. (These models use a 92 drive link chain). Note: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.

  • Makita

  • Fits: Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL model chainsaws. (These models use a 92 drive link chain). Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a .404" pitch chain.

  • Poulan / Poulan Pro

  • Fits: Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. (These models use a 92 drive link chain). Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a .404" pitch chain.

  • Shindaiwa

  • Fits: Shindaiwa 550, 575, 577 (These models use a 92 drive link chain) and 680, 695, 757, 757C and 757W model chainsaws. (These models use a 93 drive link chain).

  • Solo

  • Fits: Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws. (These models use a 92 drive link chain).

  • Length: 28", 70 cm
  • Chain / Cutter Type: 48S / Semi-Chisel or 48F / Full-Chisel
  • Pitch: 3/8"
  • Gauge: .058"
  • Drive Link Count: 92 (most) or 93 (some)
  • Bar Mount Type: CB
  • Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
  • Teeth: 11 Tooth sprocket nose
  • Equivalent Oregon Code: 288RNDD009
  • Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

  • Standard Pack Quantity: 1
  • Replaces: Husqvarna 501 95 69-92
  • Oregon 288RNDD009
  • Sugihara - Diatop VT3T-8Q70-A
  • Please Note: Use with our semi-chisel chain loop part number GAF48S092DL or our full-chisel chain loop part number GAF48F092DL for 92 drive link applications or use with our semi-chisel chain loop part number GAF48S093DL or our full-chisel chain loop part number GAF48F093DL for 93 drive link applications. For a standard PROKUT solid professional replaceable sprocket nose guide bar option use our part number GAFCB2848RS. For an .063" gauge version of this guide bar use our part number GAFCB2843RSP.
  • Replaces our part number OMK288RNDD009.
