Extended Description

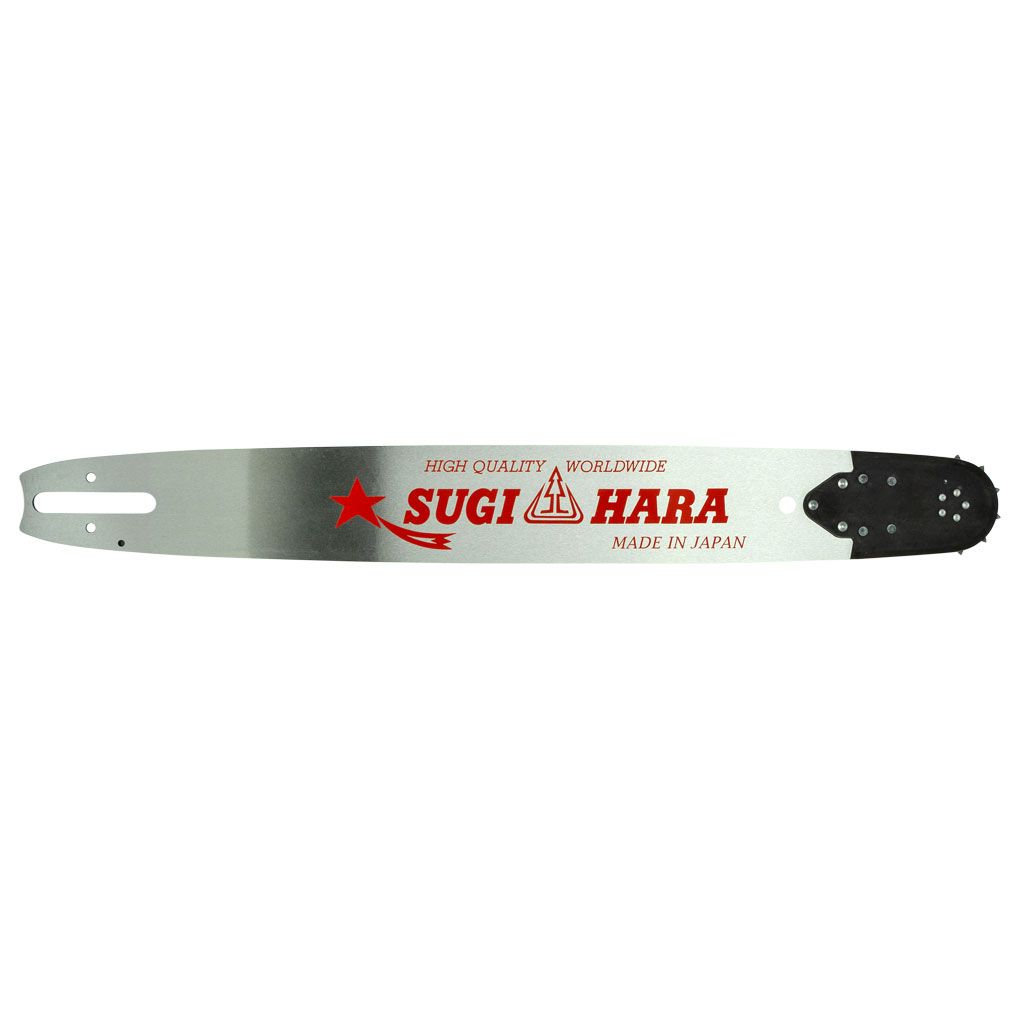

• Description: PROKUT PLATINUM SUGIHARA 16" x .325" x .063" x 67 DL, CD Mount, Solid Professional
• Replaceable Sprocket Nose Guide Bar - Made In Japan
• Replaces OEM: Oregon 163RNBD025
• Sugihara - Diatop ST2T-3J40-A
• Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and
• stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 16"
• Length: (cm): 40 cm
• Pitch: .325"
• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 33S / Semi-Chisel or 33F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 67
• Teeth: 11 Tooth sprocket nose
• Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
• Fits: STIHL 024, 024 SUPER, 026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031,
• 032, 034, 034 SUPER, 036, 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260
• PRO, MS 261, MS 261 C-Q, MS 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280,
• MS 280 C, MS 280 C-BQ, MS 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C,
• MS 360 PRO and MS 360 Q-S model chainsaws. Note: Please check your saw carefully
• prior to ordering, some of the above saw models were also released fitted with a
• 3/8" pitch chain.
• Standard Pack Quantity: 1
• Please Note: Use with our semi-chisel chain loop part number GAF33S067DL or our full-chisel
• chain loop part number GAF33F067DL.
• For a semi-professional laminated multi-rivet sprocket nose guide bar option use
• our part number GAFCD1633PL. For a bar and chain combo option that contains a
• semi-professional laminated multi-rivet sprocket nose guide bar use our part number
• GAF105705.
• Replaces our part number OMK163RNBD025
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,
• Standard Pack Quantity: 1
• Please Note: Use with our semi-chisel chain loop part number GAF33S067DL or our full-chisel
• chain loop part number GAF33F067DL.
• For a semi-professional laminated multi-rivet sprocket nose guide bar option use
• our part number GAFCD1633PL. For a bar and chain combo option that contains a
• semi-professional laminated multi-rivet sprocket nose guide bar use our part number
• GAF105705.
• Replaces our part number OMK163RNBD025
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA 16" x .325" x .063" x 67 DL, CD Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan


• Features:
  • Professional premium quality, solid, replaceable sprocket nose guide bar.
• • Manufactured from a single piece of steel, featuring superior durability and stiffness characteristics.
• • High durability sprocket nose.
• • Polished lacquered finish.
• • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• • Made in Japan.
• • All PROKUT guide bars are reversible for longer life.



• Stihl

• Fits: STIHL 024, 024 SUPER, 026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031, 032, 034, 034 SUPER, 036, 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260 PRO, MS 261, MS 261 C-Q, MS 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280, MS 280 C, MS 280 C-BQ, MS 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C, MS 360 PRO and MS 360 Q-S model chainsaws. Note: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a 3/8" pitch chain.

•

• Length: 16", 40 cm

• Chain / Cutter Type: 33S / Semi-Chisel or 33F / Full-Chisel

• Pitch: .325"

• Gauge: .063"

• Drive Link Count: 67

• Bar Mount Type: CD

• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 11 Tooth sprocket nose

• Equivalent Oregon Code: 163RNBD025

• Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 163RNBD025
• Sugihara - Diatop ST2T-3J40-A

• Please Note: Use with our semi-chisel chain loop part number GAF33S067DL or our full-chisel chain loop part number GAF33F067DL.
• For a semi-professional laminated multi-rivet sprocket nose guide bar option use our part number GAFCD1633PL. For a bar and chain combo option that contains a semi-professional laminated multi-rivet sprocket nose guide bar use our part number GAF105705.
• Replaces our part number OMK163RNBD025.
