Extended Description

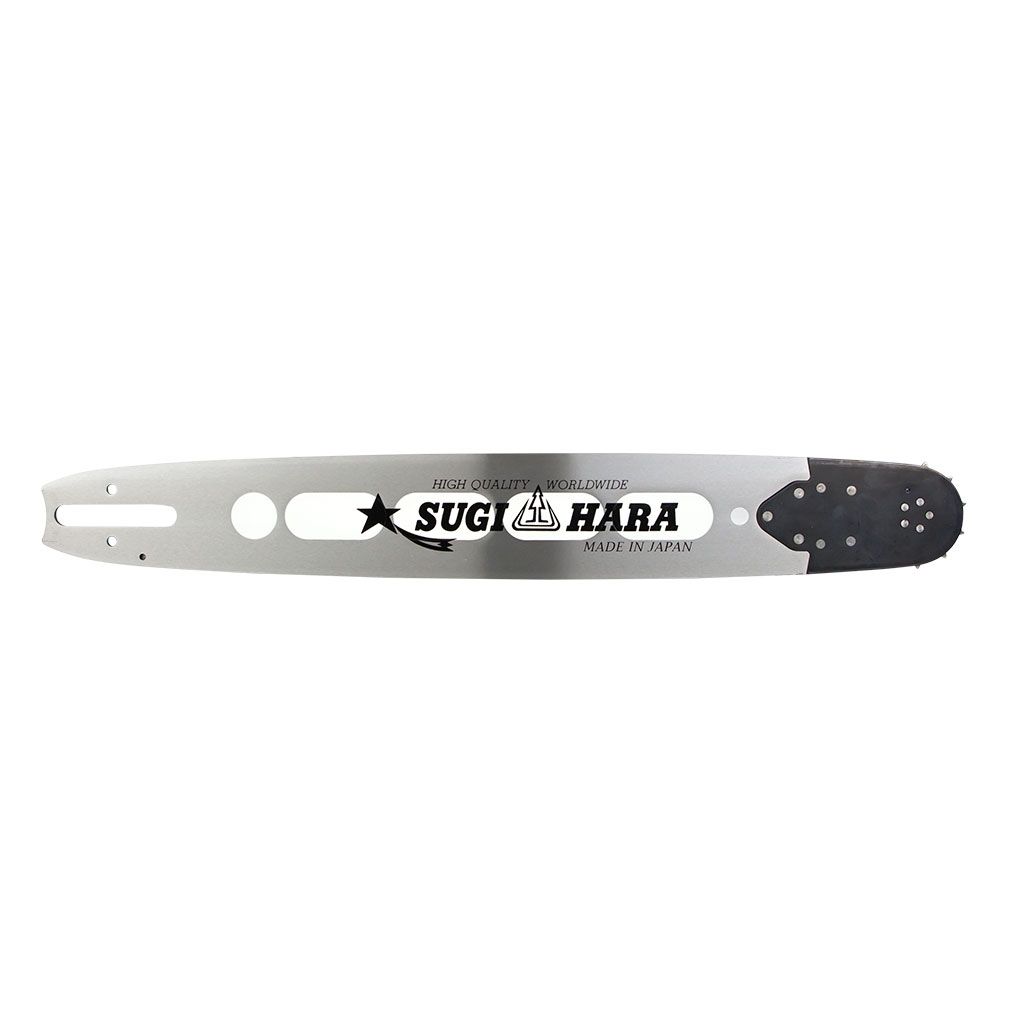

• Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 18" x 3/8" x .063" x 66 DL, CD
• Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
• manufactured In Japan from a single piece of steel. Manufactured the same way as
• the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
• rigid, weight reducing resin. One of the best guide bars in the world today
• Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
• version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
• are sought after for their high performance and light-weight. They are easily
• recognised by the white resin sections and black label. The most striking looking
• bar on the market.
• Replaces OEM: Oregon 183RNDD025
• Sugihara - Diatop ST2U-3Q45-A
• Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
• recognised by the white resin sections and black label.
• Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
• sections removed and filled with a rigid, weight reducing white resin.
• This guide bar weighs just 970g
• Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Chain Number: 43
• Length: (in): 18"
• Length: (cm): 45 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 66
• Teeth: 11 Tooth sprocket nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,
• 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
• E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
• 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
• MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
• MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.
• Product Line Notes: Please check your saw carefully prior to ordering, some of the above saw models
• were also released fitted with a .404" pitch chain.
• Standard Pack Quantity: 1
• Note: Replaces our part number OMK183RNDD025
• Please Note: Use with our semi-chisel chain loop part number GAF43S066DL or our full-chisel
• chain loop part number GAF43F066DL. For a PROKUT PLATINUM SUGIHARA solid
• professional replaceable sprocket nose guide bar option use our part number
• GAFCD1843RSP. For a standard PROKUT solid professional replaceable sprocket nose
• guide bar option use our part number GAFCD1843RS. For a semi-professional laminated
• multi-rivet sprocket nose guide bar option use our part number GAFCD1843PL. For a
• bar and chain combo option containing a semi-professional laminated multi-rivet
• sprocket nose guide bar use our part number GAF110783.
• Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,
• Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,
• sprocket nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,


• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are manufactured In Japan from a single piece of steel. Manufactured the same way as the Sugihara Red Label Pro Solid bars but with sections removed and filled with a rigid, weight reducing resin. One of the best guide bars in the world today Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars are sought after for their high performance and light-weight. They are easily recognised by the white resin sections and black label. The most striking looking bar on the market.


• Features:
  • PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily recognised by the white resin sections and black label.
• • Manufactured the same way as the Sugihara Red Label Pro Solid bars but with sections removed and filled with a rigid, weight reducing white resin.
• • This guide bar weighs just 970g
• • Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• • High durability sprocket nose.
• • Polished lacquered finish.
• • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• • Made in Japan.
• • All PROKUT guide bars are reversible for longer life.



• Stihl

• Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.

• Product Line Notes: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.
•

•

• Length: 18", 45 cm

• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel

• Pitch: 3/8"

• Gauge: .063"

• Drive Link Count: 66

• Bar Mount Type: CD

• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 11 Tooth sprocket nose

• Equivalent Oregon Code: 183RNDD025

• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 183RNDD025
• Sugihara - Diatop ST2U-3Q45-A

• Please Note: Use with our semi-chisel chain loop part number GAF43S066DL or our full-chisel chain loop part number GAF43F066DL. For a PROKUT PLATINUM SUGIHARA solid professional replaceable sprocket nose guide bar option use our part number GAFCD1843RSP. For a standard PROKUT solid professional replaceable sprocket nose guide bar option use our part number GAFCD1843RS. For a semi-professional laminated multi-rivet sprocket nose guide bar option use our part number GAFCD1843PL. For a bar and chain combo option containing a semi-professional laminated multi-rivet sprocket nose guide bar use our part number GAF110783.
• Replaces our part number OMK183RNDD025.
