Extended Description

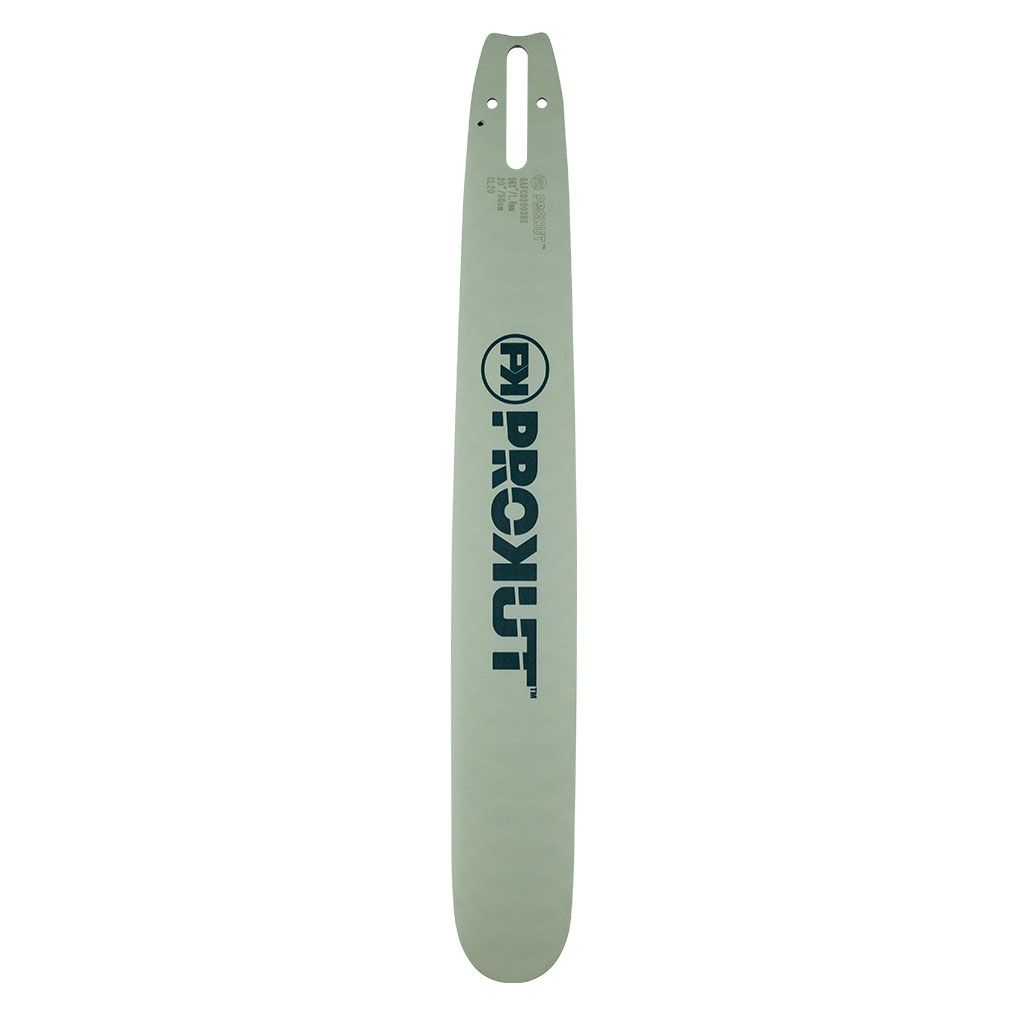

• Description: PROKUT 20" x .063" CD Mount, Solid Professional Hard Nose Guide Bar - Suits .325" &
• 3/8" Chain Pitch Applications
• Replaces OEM: OREGON 203ATMD025
• Features: • Solid body, professional hard nose guide bar
• • Ultra high wear resistant stellite alloy promotes longer bar nose life
• • Stellite is laser welded to the nose which provides an optimum bond without
• weakening the bar body, as can occur with a gas welding process
• • Super tough chrome-moly steel provides superior bar-body strength and tough
• rails with excellent resistance to wear and chipping
• • All PROKUT guide bars are reversible for longer life
• Length: (in): 20"
• Length: (cm): 50 cm
• Pitch: Suits both .325 & 3/8" applications (Hard nose guide bar)
• Bar Type: Solid body, hard nose guide bar
• Chain / Cutter Type: * Please refer to the product note below.
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: * Please refer to the product note below.
• Teeth: Nil (hard nose guide bar)
• Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)
• Fits: STIHL .325" x .063" x 81 drive link applications including selected 024, 024 SUPER,
• 026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031, 032, 034, 034 SUPER, 036,
• 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260 PRO, MS 261, MS 261 C-Q, MS
• 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280, MS 280 C, MS 280 C-BQ, MS
• 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C, MS 360 PRO and MS 360 Q-S
• chainsaw models when fitted with a .325" x .063" x 81 drive link chain. (For the
• above .325" pitch applications use with our semi-chisel chain loop part number
• GAF33S081DL or our full-chisel chain loop part number GAF33F081DL). Note: Please
• check your saw carefully prior to ordering, some of the above saw models were also
• released fitted with a 3/8" pitch chain.
• Fits: STIHL 3/8" x .063 x 72 drive link applications including selected 034, 034 SUPER,
• 036, 036 SUPER, 038, 038 MAGNUM, 038 SUPER MAGNUM, 039, 041, 042, 044, 044M, 045,
• 046, 046M, 048, 056, 056S, 064, 066, 066 MAGNUM, E 15, E 20, E 220, MS 290, MS 310
• FARM BOSS, MS 311, MS 360, MS 361, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS
• 380, MS 390, MS 390 FARM BOSS, MS 391, MS 440, MS 440 MAGNUM, MS 441, MS 441C, MS
• 441 C-M, MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 MAGNUM, MS 461, MS 650, MS 660,
• MS 660M, MS 660 MAGNUM, MS 661 C-M, MS 661 RC-M, MSE 220, MSE 220C, MSE 250 C
• chainsaw models when fitted with a 3/8" x .063" x 72 drive link chain. (For the
• above 3/8" pitch applications use with our semi-chisel chain loop part number
• GAF43S072DL or our full-chisel chain loop part number GAF43F072DL). Note: Please
• check your saw carefully prior to ordering, some of the above saw models were also
• released fitted with either a .325" or a .404" pitch chain.
• Fits: STIHL 3/8" x .063 x 72 drive link applications including selected 034, 034 SUPER,
• 036, 036 SUPER, 038, 038 MAGNUM, 038 SUPER MAGNUM, 039, 041, 042, 044, 044M, 045,
• 046, 046M, 048, 056, 056S, 064, 066, 066 MAGNUM, E 15, E 20, E 220, MS 290, MS 310
• FARM BOSS, MS 311, MS 360, MS 361, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS
• 380, MS 390, MS 390 FARM BOSS, MS 391, MS 440, MS 440 MAGNUM, MS 441, MS 441C, MS
• 441 C-M, MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 MAGNUM, MS 461, MS 650, MS 660,
• MS 660M, MS 660 MAGNUM, MS 661 C-M, MS 661 RC-M, MSE 220, MSE 220C, MSE 250 C
• chainsaw models when fitted with a 3/8" x .063" x 72 drive link chain. (For the
• above 3/8" pitch applications use with our semi-chisel chain loop part number
• GAF43S072DL or our full-chisel chain loop part number GAF43F072DL). Note: Please
• check your saw carefully prior to ordering, some of the above saw models were also
• released fitted with either a .325" or a .404" pitch chain.
• Standard Pack Quantity: 1
• Please Note: *This hard nose guide bar accepts multiple chain pitches and drive link counts,
• please refer to each description grouping carefully prior to ordering, for this
• varying information.
• Please Note: Replaces our part number OMK203ATMD025
• Brand: PROKUT, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional hard nose guide bar, hard nose guide bar,
• Standard Pack Quantity: 1
• Please Note: *This hard nose guide bar accepts multiple chain pitches and drive link counts,
• please refer to each description grouping carefully prior to ordering, for this
• varying information.
• Please Note: Replaces our part number OMK203ATMD025
• Brand: PROKUT, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional hard nose guide bar, hard nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2025. All Rights Reserved.

• Description:
• Stihl,
• PROKUT 20" x .063" CD Mount, Solid Professional Hard Nose Guide Bar - Suits .325" & 3/8" Chain Pitch Applications


• Features:
  • Solid body, professional hard nose guide bar
• • Ultra high wear resistant stellite alloy promotes longer bar nose life
• • Stellite is laser welded to the nose which provides an optimum bond without weakening the bar body, as can occur with a gas welding process
• • Super tough chrome-moly steel provides superior bar-body strength and tough rails with excellent resistance to wear and chipping
• • All PROKUT guide bars are reversible for longer life



• Stihl

• Fits: STIHL .325" x .063" x 81 drive link applications including selected 024, 024 SUPER, 026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031, 032, 034, 034 SUPER, 036, 036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260 PRO, MS 261, MS 261 C-Q, MS 270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280, MS 280 C, MS 280 C-BQ, MS 280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C, MS 360 PRO and MS 360 Q-S chainsaw models when fitted with a .325" x .063" x 81 drive link chain. (For the above .325" pitch applications use with our semi-chisel chain loop part number GAF33S081DL or our full-chisel chain loop part number GAF33F081DL). Note: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a 3/8" pitch chain.
• Fits: STIHL 3/8" x .063 x 72 drive link applications including selected 034, 034 SUPER, 036, 036 SUPER, 038, 038 MAGNUM, 038 SUPER MAGNUM, 039, 041, 042, 044, 044M, 045, 046, 046M, 048, 056, 056S, 064, 066, 066 MAGNUM, E 15, E 20, E 220, MS 290, MS 310 FARM BOSS, MS 311, MS 360, MS 361, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 FARM BOSS, MS 391, MS 440, MS 440 MAGNUM, MS 441, MS 441C, MS 441 C-M, MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 MAGNUM, MS 461, MS 650, MS 660, MS 660M, MS 660 MAGNUM, MS 661 C-M, MS 661 RC-M, MSE 220, MSE 220C, MSE 250 C chainsaw models when fitted with a 3/8" x .063" x 72 drive link chain. (For the above 3/8" pitch applications use with our semi-chisel chain loop part number GAF43S072DL or our full-chisel chain loop part number GAF43F072DL). Note: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with either a .325" or a .404" pitch chain.

•

• Length: 20", 50 cm

• Chain / Cutter Type: * Please refer to the product note below.

• Pitch: Suits both .325 & 3/8" applications (Hard nose guide bar)

• Gauge: .063"

• Drive Link Count: * Please refer to the product note below.

• Bar Mount Type: CD

• Bar Type: Solid body, hard nose guide bar

• Teeth: Nil (hard nose guide bar)

• Equivalent Oregon Code: 203ATMD025

• Recommended Saw Sizes: 38 cc to 62 cc (2.3 to 3.8 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: OREGON 203ATMD025

• Please Note: *This hard nose guide bar accepts multiple chain pitches and drive link counts, please refer to each description grouping carefully prior to ordering, for this varying information.
• Replaces our part number OMK203ATMD025.
