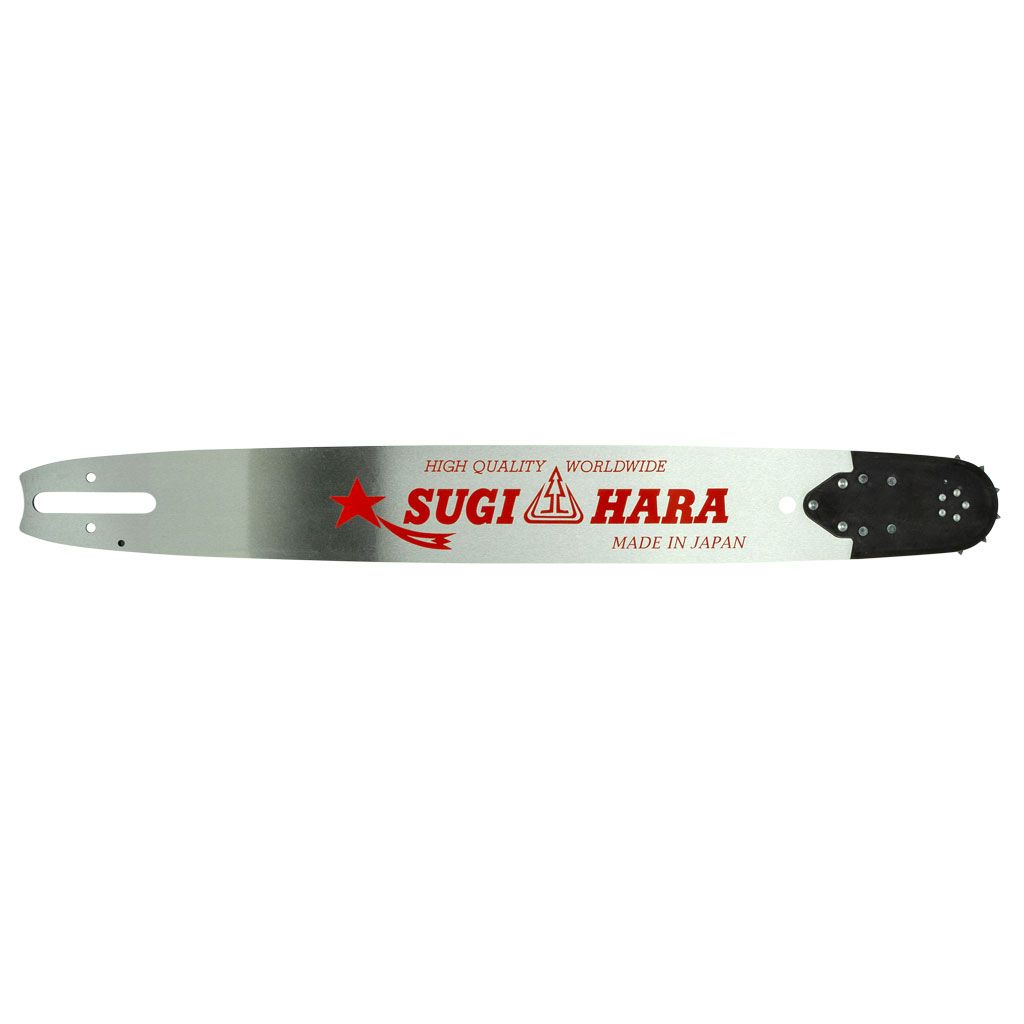

GA Spares | PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 20 #43 CD

Back To Search Results

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

GAFCD2043RSP

PROKUT PLATINUM SUGI HARA

SPROCKET NOSE BAR 20 #43 CD

Brand: FORESTRY - GA

Extended Description

Description: PROKUT PLATINUM SUGIHARA 20" x 3/8" x .063" x 72 DL, CD Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM: Oregon 203RNDD025
Sugihara - Diatop ST2T-3Q50-A
Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in): 20"
Length: (cm): 50 cm
Pitch: 3/8"
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type: CD
Gauge: .063"
Drive Link Count: 72
Teeth: 11 Tooth sprocket nose
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,
042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C model
chainsaws. Note: Please check your saw carefully prior to ordering, some of the
above saw models were also released fitted with a .404" pitch chain.
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S072DL or our full-chisel
chain loop part number GAF43F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCD2043RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFCD2043PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF110784.
Replaces our part number OMK203RNDD025
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
Standard Pack Quantity: 1
Please Note: Use with our semi-chisel chain loop part number GAF43S072DL or our full-chisel
chain loop part number GAF43F072DL. For a standard PROKUT solid professional
replaceable sprocket nose guide bar option use our part number GAFCD2043RS. For a
semi-professional laminated multi-rivet sprocket nose guide bar option use our part
number GAFCD2043PL. For a bar and chain combo option containing a semi-professional
laminated multi-rivet sprocket nose guide bar use our part number GAF110784.
Replaces our part number OMK203RNDD025
Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,

Extended Description by Producty

Description:
Stihl,
PROKUT PLATINUM SUGIHARA 20" x 3/8" x .063" x 72 DL, CD Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
Features:
• Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
Stihl
Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C model chainsaws. Note: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.
Product Line Notes: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.
Length: 20", 50 cm
Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
Pitch: 3/8"
Gauge: .063"
Drive Link Count: 72
Bar Mount Type: CD
Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Teeth: 11 Tooth sprocket nose
Equivalent Oregon Code: 203RNDD025
Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
Standard Pack Quantity: 1
Replaces: Oregon 203RNDD025
Sugihara - Diatop ST2T-3Q50-A
Please Note: Use with our semi-chisel chain loop part number GAF43S072DL or our full-chisel chain loop part number GAF43F072DL. For a Prokut Platinum Sugihara reduced weight pro series replaceable sprocket nose bar option use our part number GAFCD2043RRP. For a standard PROKUT solid professional replaceable sprocket nose guide bar option use our part number GAFCD2043RS. For a professional hard nose bar option use our part number GAFCD2003HS. For a semi-professional laminated multi-rivet sprocket nose guide bar option use our part number GAFCD2043PL. For a bar and chain combo option containing a semi-professional laminated multi-rivet sprocket nose guide bar use our part number GAF110784.

Replaces our part number OMK203RNDD025.
