Extended Description

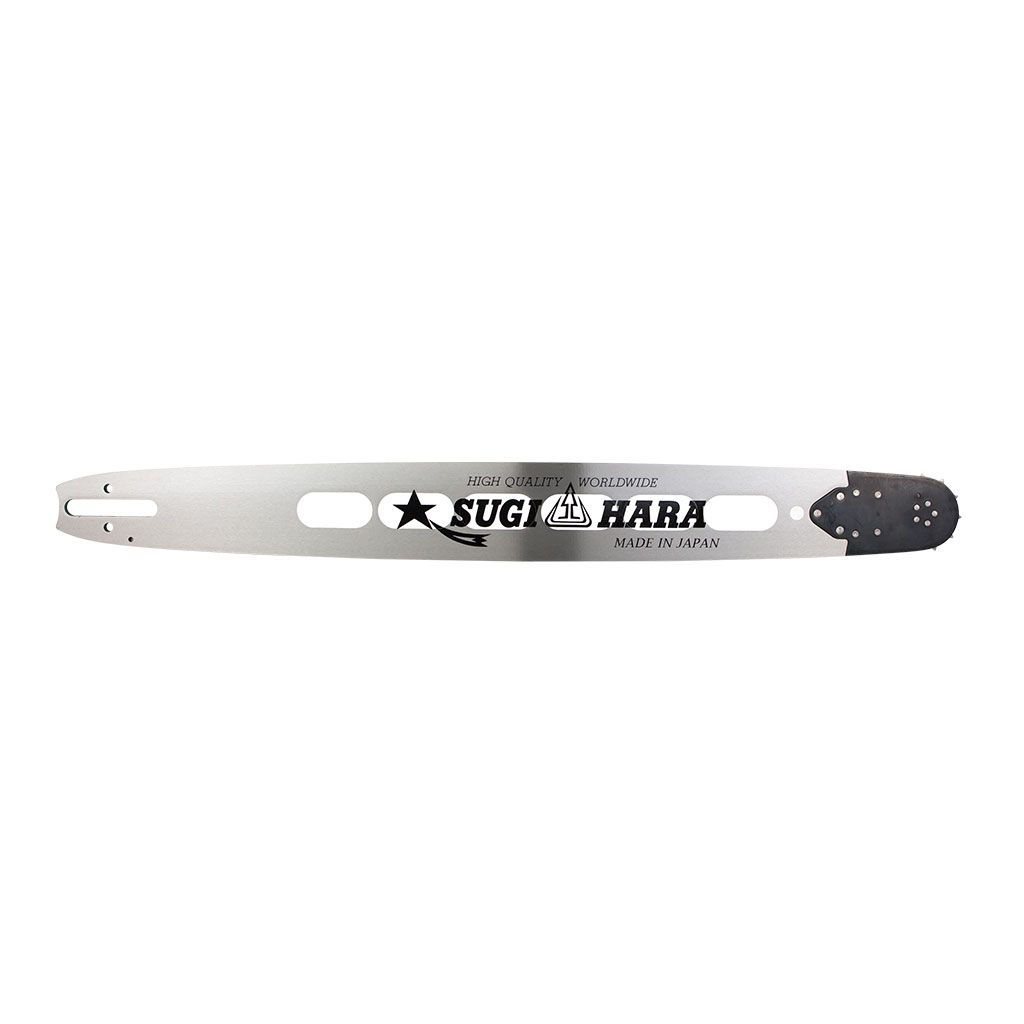

• Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 25" x 3/8" x .063" x 84 DL or
• *85DL, CD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
• manufactured In Japan from a single piece of steel. Manufactured the same way as
• the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
• rigid, weight reducing resin. One of the best guide bars in the world today
• Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
• version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
• are sought after for their high performance and light-weight. They are easily
• recognised by the white resin sections and black label. The most striking looking
• bar on the market.
• Replaces OEM: Oregon 253RNDD025
• Sugihara - Diatop ST2U-3Q63-A
• Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
• recognised by the white resin sections and black label.
• Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
• sections removed and filled with a rigid, weight reducing white resin.
• This guide bar weighs just 1390g
• Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 25"
• Length: (cm): 63 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).
• Teeth: 11 Tooth sprocket nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,
• 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
• 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
• MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
• 390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
• Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
• RC-M, MSE 220 C, MSE 250 C.
• Product Line Notes: Please refer to the product notes below, please also check your saw carefully prior
• to ordering, some of these saw models were also released fitted with a .404”
• pitch chain.
• Standard Pack Quantity: 1
• Note: Replaces our part number OMK253RNDD025
• Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
• chain to be fitted for use with the standard 8-tooth rim sprocket (part number
• GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
• GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
• changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
• sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
• brands and models use with our semi-chisel chain loop part number GAF43S084DL or
• our full-chisel chain loop part number GAF43F084DL. For a PROKUT PLATINUM SUGIHARA
• solid professional replaceable sprocket nose guide bar option use our part number
• GAFCD2543RSP. For a standard PROKUT solid professional replaceable sprocket nose
• guide bar option (which uses 84 DL chain) use our part number GAFCD2443RS.
• Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,
• Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,
• sprocket nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 25" x 3/8" x .063" x 84 DL or *85DL, CD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan


• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are manufactured In Japan from a single piece of steel. Manufactured the same way as the Sugihara Red Label Pro Solid bars but with sections removed and filled with a rigid, weight reducing resin. One of the best guide bars in the world today Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars are sought after for their high performance and light-weight. They are easily recognised by the white resin sections and black label. The most striking looking bar on the market.


• Features:
  • PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily recognised by the white resin sections and black label.
• • Manufactured the same way as the Sugihara Red Label Pro Solid bars but with sections removed and filled with a rigid, weight reducing white resin.
• • This guide bar weighs just 1390g
• • Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• • High durability sprocket nose.
• • Polished lacquered finish.
• • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• • Made in Japan.
• • All PROKUT guide bars are reversible for longer life.



• Stihl

• Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661 RC-M, MSE 220 C, MSE 250 C.

• Product Line Notes: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a .404” pitch chain.

•

• Length: 25", 63 cm

• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel

• Pitch: 3/8"

• Gauge: .063"

• Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).

• Bar Mount Type: CD

• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 11 Tooth sprocket nose

• Equivalent Oregon Code: 243RNDD025

• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 253RNDD025
• Sugihara - Diatop ST2U-3Q63-A

• Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link chain to be fitted for use with the standard 8-tooth rim sprocket (part number GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim sprocket system or part number GAF68120 for the 7-tooth rim only). For all other brands and models use with our semi-chisel chain loop part number GAF43S084DL or our full-chisel chain loop part number GAF43F084DL. For a PROKUT PLATINUM SUGIHARA solid professional replaceable sprocket nose guide bar option use our part number GAFCD2543RSP. For a standard PROKUT solid professional replaceable sprocket nose guide bar option (which uses 84 DL chain) use our part number GAFCD2443RS.
• Replaces our part number OMK253RNDD025.
