Extended Description

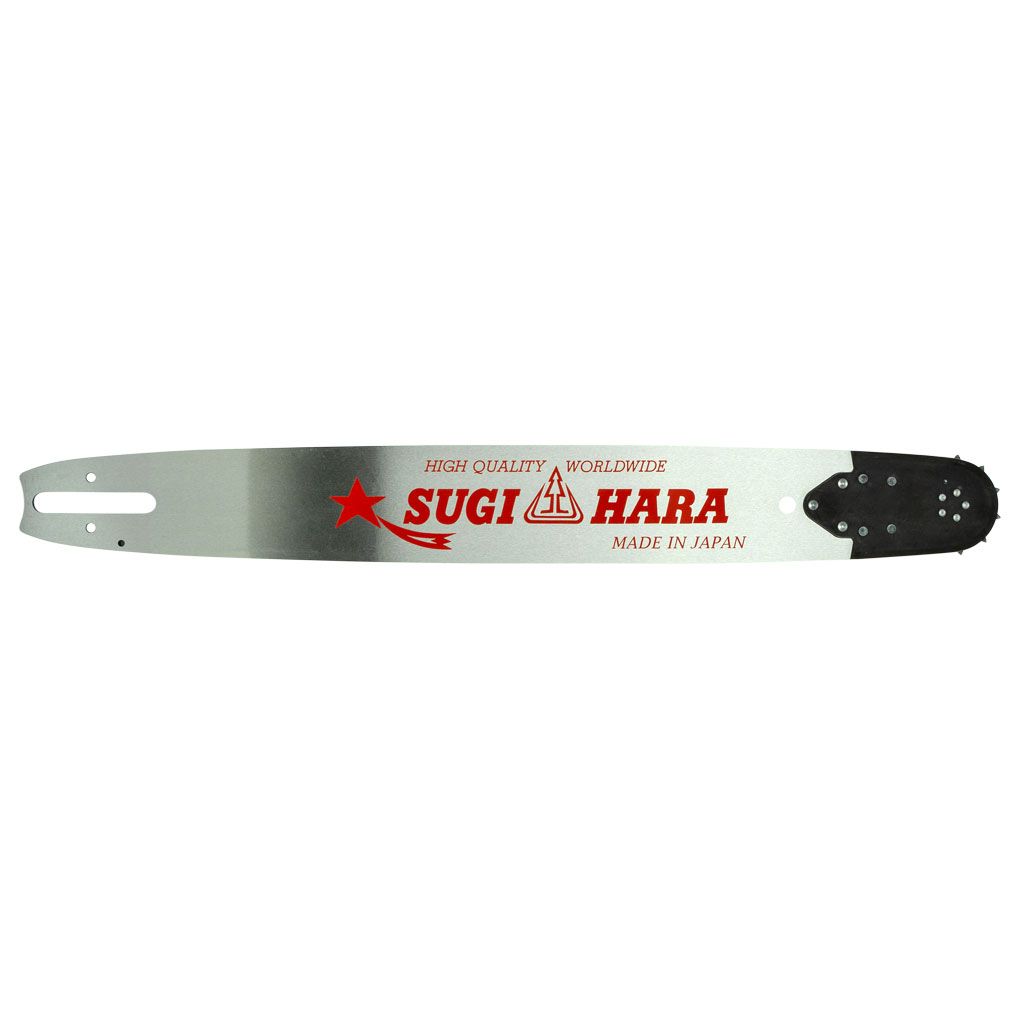

• Description: PROKUT PLATINUM SUGIHARA 25" x 3/8" x .063 x 84 DL or *85DL, CD Mount, Solid
• Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
• Replaces OEM: Oregon 243RNDD025
• Sugihara - Diatop ST2T-3Q63-A
• Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and
• stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 25"
• Length: (cm): 63 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel Or 43F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).
• Teeth: 11 Tooth Sprocket Nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,
• 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
• 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
• MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
• 390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
• Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
• RC-M, MSE 220 C, MSE 250 C. Note: Please check your saw carefully prior to
• ordering, some of these saw models were also released fitted with a .404” pitch
• chain.
• Standard Pack Quantity: 1
• Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
• chain to be fitted for use with the standard 8-tooth rim sprocket (part number
• GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
• GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
• changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
• sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
• brands and models use with our semi-chisel chain loop part number GAF43S084DL or
• our full-chisel chain loop part number GAF43F084DL. For a standard PROKUT solid
• professional replaceable sprocket nose guide bar option use our part number
• GAFCD2443RS.
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,
• Standard Pack Quantity: 1
• Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
• chain to be fitted for use with the standard 8-tooth rim sprocket (part number
• GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
• GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
• changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
• sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
• brands and models use with our semi-chisel chain loop part number GAF43S084DL or
• our full-chisel chain loop part number GAF43F084DL. For a standard PROKUT solid
• professional replaceable sprocket nose guide bar option use our part number
• GAFCD2443RS.
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA 25" x 3/8" x .063 x 84 DL, CD Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan


• Features:
  • Professional premium quality, solid, replaceable sprocket nose guide bar.
• • Manufactured from a single piece of steel, featuring superior durability and stiffness characteristics.
• • High durability sprocket nose.
• • Polished lacquered finish.
• • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• • Made in Japan.
• • All PROKUT guide bars are reversible for longer life.



• Stihl

• Fits: Stihl 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum, MS 661, MS661 RC-M, MSE 220 C, MSE 250 C. Note: Please check your saw carefully prior to ordering, some of these saw models were also released fitted with a .404

• Product Line Notes: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.

•

• Length: 25", 63 cm

• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel

• Pitch: 3/8"

• Gauge: .063"

• Drive Link Count: 84

• Bar Mount Type: CD

• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 11 Tooth sprocket nose

• Equivalent Oregon Code: 243RNDD025

• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 243RNDD025
• Sugihara - Diatop ST2T-3Q63-A

• Please Note: Use with our semi-chisel chain loop part number GAF43S084DL or our full-chisel chain loop part number GAF43F084DL. For a Prokut Platinum Sugihara reduced weight pro series replaceable sprocket nose bar option use our part number GAFCD2543RRP. For a standard PROKUT solid professional replaceable sprocket nose guide bar option use our part number GAFCD2443RS.
