Extended Description

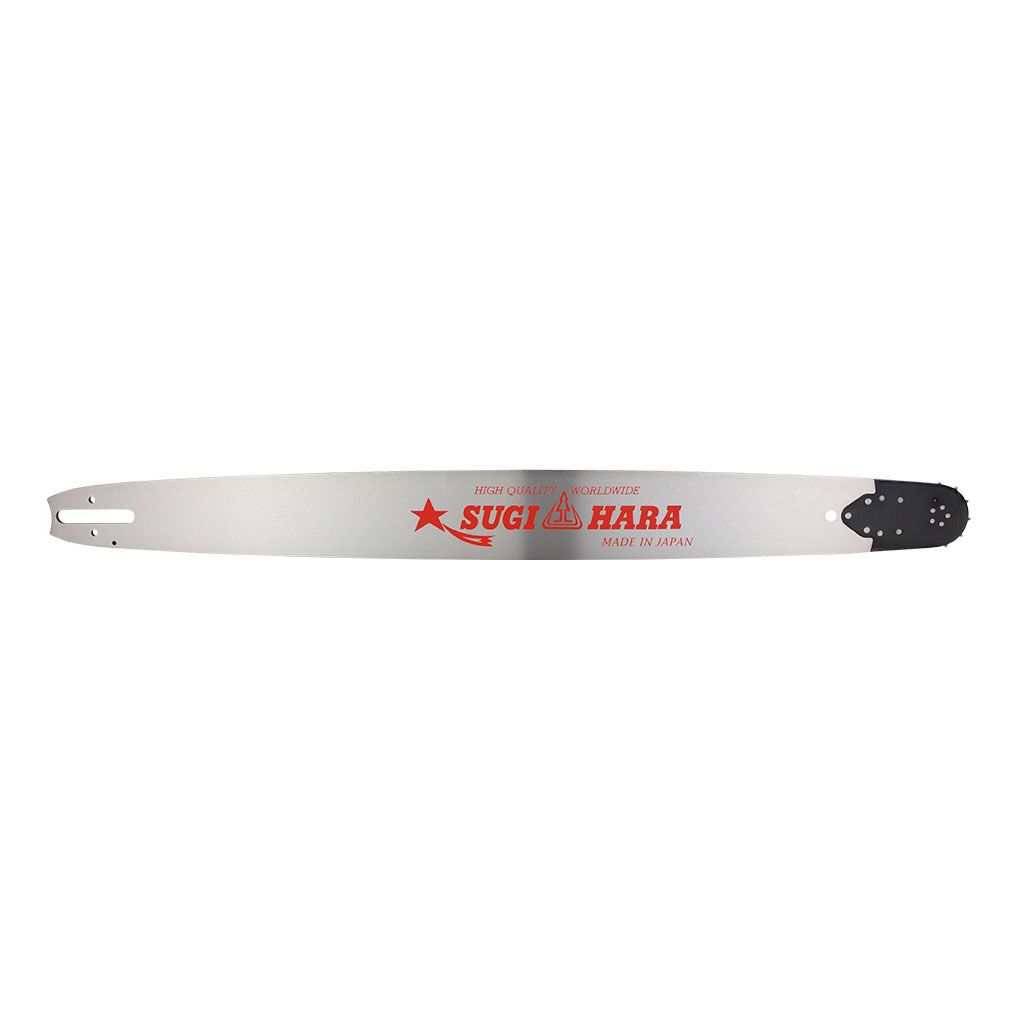

• Description: PROKUT PLATINUM SUGIHARA 30" x 3/8" x .063 x 98 DL, CD Mount, Solid Professional
• Replaceable Sprocket Nose Guide Bar - Made In Japan
• Editorial: Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and
• stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Replaces OEM: Oregon 303RNDD025
• Sugihara - Diatop ST2T-3Q76-A
• Length: (in): 30"
• Length: (cm): 75 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel Or 43F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 98
• Teeth: 11 Tooth Sprocket Nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,
• 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,
• E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS
• 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,
• MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,
• MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.
• Note: Please check your saw carefully prior to ordering, some of the above saw
• models were also released fitted with a .404" pitch chain.
• Standard Pack Quantity: 1
• Note: Replaces our part number OMK303RNDD025.
• Please Note: Use with our semi-chisel chain loop part number GAF43S098DL or our full-chisel
• chain loop part number GAF43F098DL.
• For a standard PROKUT solid professional replaceable sprocket nose guide bar option
• use our part number GAFCD3043RS.
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA 30" x 3/8" x .063 x 98 DL, CD Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan



• Stihl

• Fits: STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.

• Product Line Notes: Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .404" pitch chain.

•

• Length: 30", 75 cm

• Chain / Cutter Type: 43S / Semi-Chisel Or 43F / Full-Chisel

• Pitch: 3/8"

• Gauge: .063"

• Drive Link Count: 98

• Bar Mount Type: CD

• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 11 Tooth Sprocket Nose

• Equivalent Oregon Code: 303RNDD025

• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 303RNDD025
• Sugihara - Diatop ST2T-3Q76-A

• Please Note: Use with our semi-chisel chain loop part number GAF43S098DL or our full-chisel chain loop part number GAF43F098DL.
• For a standard PROKUT solid professional replaceable sprocket nose guide bar option use our part number GAFCD3043RS.
• Replaces our part number OMK303RNDD025.
