Extended Description

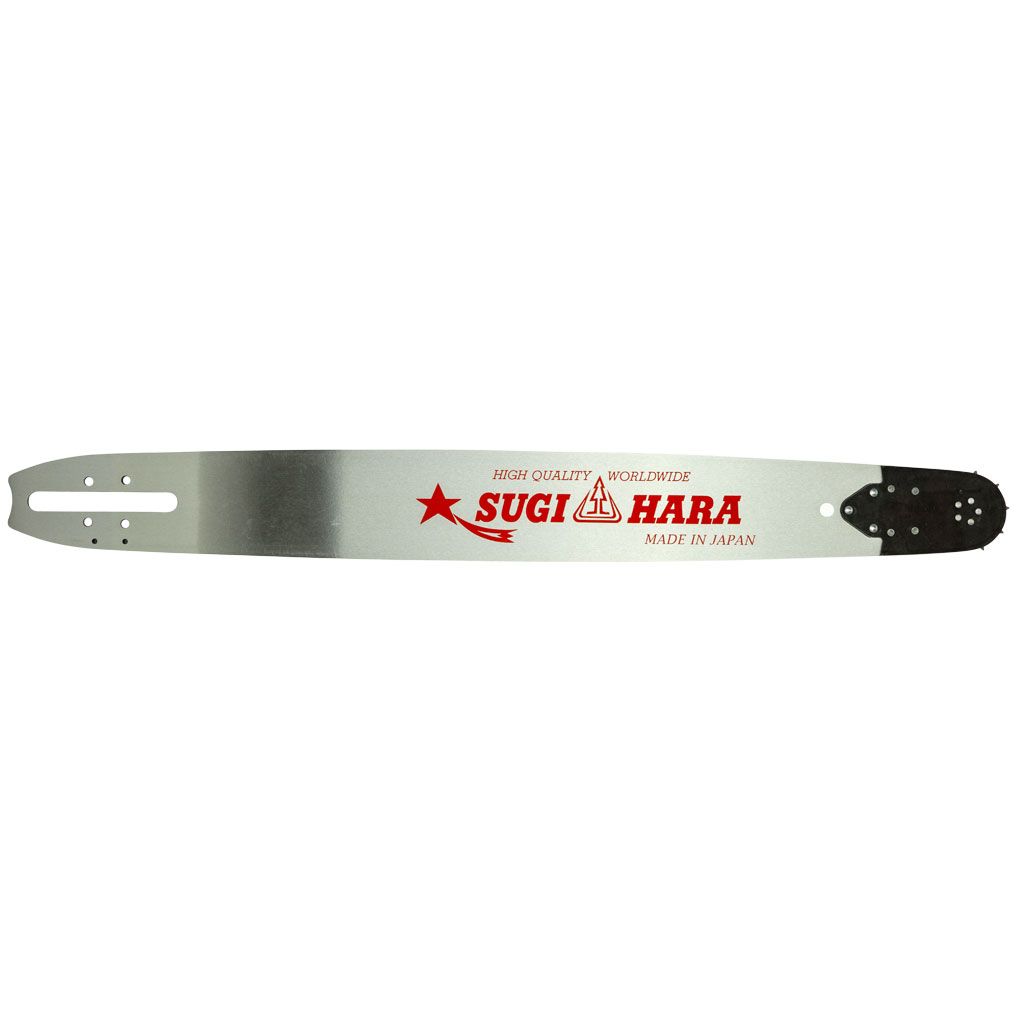

• Description: PROKUT PLATINUM SUGIHARA 25" x .404" x .063" x 80 DL, DB Mount, Solid Professional
• Replaceable Sprocket Nose Guide Bar - Made In Japan
• Replaces OEM: Oregon 253RNFE099, 253RNFE031
• Sugihara - Diatop SG6T-3S60-A
• Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and
• stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 25"
• Length: (cm): 60 cm
• Pitch: .404"
• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 53S / Semi-Chisel or 53F / Full-Chisel
• Bar Mount Type: DB
• Gauge: .063"
• Drive Link Count: 80
• Teeth: 10 Tooth Sprocket Nose
• Recommended Saw Sizes: 65 cc and larger (4.0 cu. in. and larger)
• Fits: STIHL 050, 051, 075, 076, 07 S, 070, 084, 088, 088 Magnum, 08 S, 08 S-EQ, 090 AV, E
• 30, MS 880, MS 880 Magnum and S 10 model chainsaws.
• Standard Pack Quantity: 1
• Please Note: Use with our semi-chisel chain loop part number GAF53S080DL or our full-chisel
• chain loop part number GAF53F080DL .
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,
• Standard Pack Quantity: 1
• Please Note: Use with our semi-chisel chain loop part number GAF53S080DL or our full-chisel
• chain loop part number GAF53F080DL .
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Stihl,
• PROKUT PLATINUM SUGIHARA 25" x .404" x .063" x 80 DL, DB Mount, Solid Professional Replaceable Sprocket Nose Guide Bar - Made In Japan


• Features:
  • Professional premium quality, solid, replaceable sprocket nose guide bar.
• • Manufactured from a single piece of steel, featuring superior durability and stiffness characteristics.
• • High durability sprocket nose.
• • Polished lacquered finish.
• • Nose fastens with three rivets, and is securely held by wide and strong overlapping ears.
• • The long sprocket nose takes most of the abuse, and minimizes wear to the bars body.
• • Super tough steel, heat treated up to 4 times on different parts of the guide bar, provides superior bar-body strength and tough rails with excellent resistance to wear and chipping.
• • PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• • Made in Japan.
• • All PROKUT guide bars are reversible for longer life.



• Stihl

• Fits: STIHL 050, 051, 075, 076, 07 S, 070, 084, 088, 088 Magnum, 08 S, 08 S-EQ, 090 AV, E 30, MS 880, MS 880 Magnum and S 10 model chainsaws.

•

• Length: 25", 60 cm

• Chain / Cutter Type: 53S / Semi-Chisel or 53F / Full-Chisel

• Pitch: .404"

• Gauge: .063"

• Drive Link Count: 80

• Bar Mount Type: DB

• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

• Teeth: 10 Tooth sprocket nose

• Equivalent Oregon Code: 253RNFE099, 253RNFE031

• Recommended Saw Sizes: 65 cc and larger (4.0 cu. in. and larger)

•

• Standard Pack Quantity: 1

• Replaces: Oregon 253RNFE099, 253RNFE031
• Sugihara - Diatop SG6T-3S60-A

• Please Note: Use with our semi-chisel chain loop part number GAF53S080DL or our full-chisel chain loop part number GAF53F080DL. For a solid professional replaceable sprocket nose bar option use our part number GAFDA2553RS.
• Replaces our part number OMK253RNFE031.
