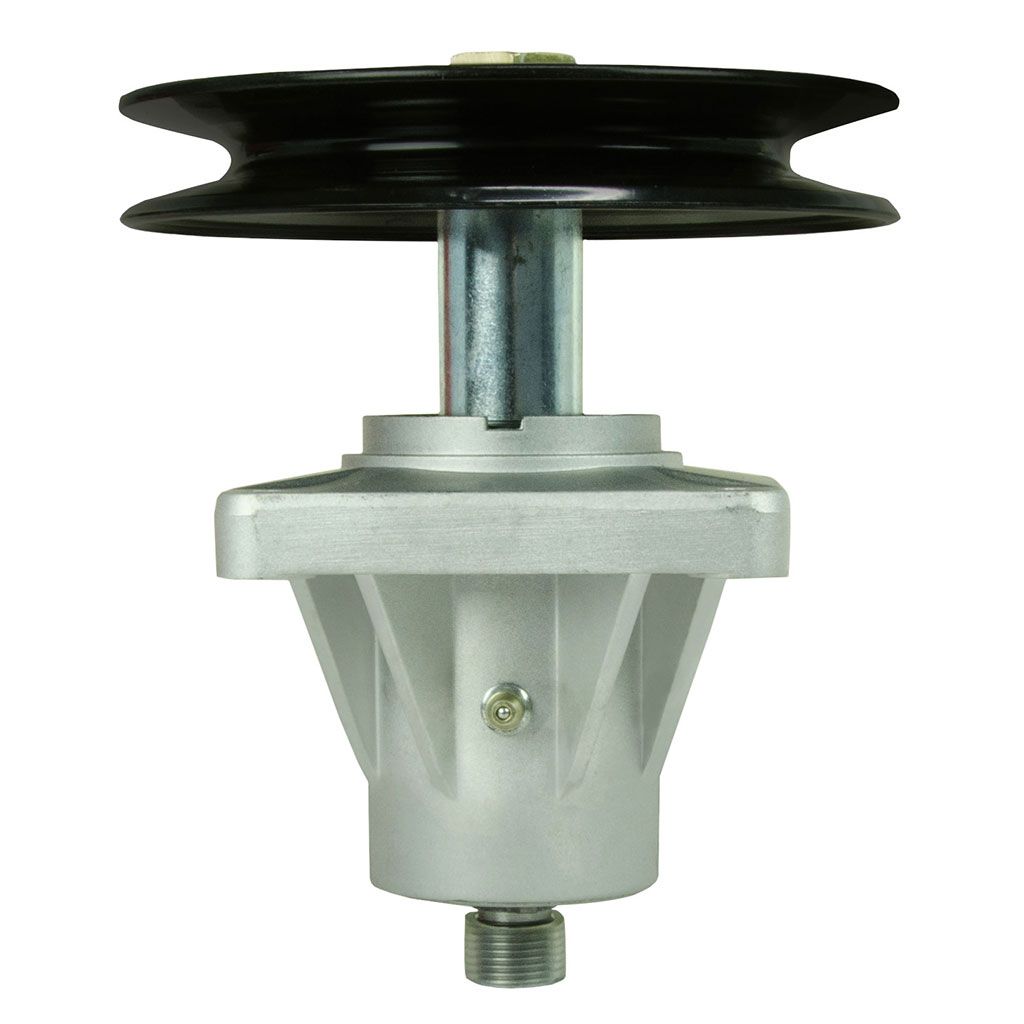

CUB CADET / MTD / YARDMAN SPINDLE ASSEMBLY SUITS 46

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

JAS7511

CUB CADET / MTD / YARDMAN

SPINDLE ASSEMBLY SUITS 46"

Brand: GA SPARES - GA
Qty:

Extended Description

  • Description: Non-Genuine Cub Cadet, MTD Yard-Man 46" Cut Spindle Assembly
  • Replaces OEM: Cub Cadet 618-0625, 618-04137, 618-04137A, 618-0660, 618-0660A, 618-0660B,
  • 618-0625, 618-0625A, 618-0625B, 718-0660, 918-04137, 918-04137A, 918-0625B,
  • Replaces OEM: Cub Cadet 618-0625, 618-04137, 618-04137A, 618-0660, 618-0660A, 618-0660B,
  • 618-0625, 618-0625A, 618-0625B, 918-04137, 918-04137A, 918-0625B,
  • 918-0660, 918-0660A, 918-0660B
  • MTD 618-0625, 618-04137, 618-04137A, 618-0660, 618-0660A, 618-0660B, 618-0625,
  • 618-0625A, 618-0625B, 918-04137, 918-04137A, 918-0625B, 918-0660,
  • 918-0660A, 918-0660B
  • Centre Hole Type: 6-Point Star
  • Deck (cm) 116 cm
  • Deck (inches) 46"
  • Deck (mm) 1168 mm
  • Height: (inches) 6.375" (From top of pulley to bottom of shaft), 3.125" (From bottom of mounting holes to bottom of shaft)
  • Height: (mm) 161.93 mm (From top of pulley to bottom of shaft), 79.37 mm (From bottom of mounting holes to bottom of shaft)
  • Pulley Diameter: (inches) 5.500"
  • Pulley Diameter: (mm) 139.70 mm
  • Pulley Height : (inches) .938"
  • Pulley Height : (mm) 23.81 mm
  • Thread Size: 5/8"-18 UNF (Both top and bottom of shaft)
  • Fits: Cub Cadet and MTD Yard-Man selected 46" (1168 mm) cut decks using star centre hole
  • blades including but not limited to –
  • Fits: 46" (1168 mm) cut Cub Cadet i1046 (model 17AE9BKH010 year 2008 onwards, model
  • 17AF9BKH010 year 2008 onwards, model 17AF9BKKH630 year 2007, model 17RF9BKH756 year
  • 2007 and prior, model 17AF9BKH710 year 2007 and prior) and LT1046 (model
  • 13AP11CH630* year 2006 onwards, model 13AP11CH010 year 2008 onwards) ride-on lawn
  • mower models.
  • Fits: 46" (1168 mm) cut MTD Yard-Man (model 13AP605H755 year 2006, model 13AP604H671 year
  • 2007 and model 13AR604H671* year 2006 onwards) ride-on lawn mower models.
  • Fits: 46" (1168 mm) cut Cub Cadet i1046 (model 17AE9BKH010 year 2008 onwards, model
  • 17AF9BKH010 year 2008 onwards, model 17AF9BKKH630 year 2007, model 17RF9BKH756 year
  • 2007 and prior, model 17AF9BKH710 year 2007 and prior) and LT1046 (model
  • 13AP11CH630* year 2006 onwards, model 13AP11CH010 year 2008 onwards) ride-on lawn
  • mower models.
  • Fits: 46" (1168 mm) cut MTD Yard-Man (model 13AP605H755 year 2006, model 13AP604H671 year
  • 2007 and model 13AR604H671* year 2006 onwards) ride-on lawn mower models.
  • Features: For selected 46" cut decks fitted with 6-point star centre hole blades.
  • Standard Pack Quantity: 1
  • Please Note: * Both Cub Cadet LT1046 (model 13AP11CH630*) and MTD Yard-Man (model 13AR604H671*)
  • year 2005 and earlier models used a different spindle assembly.
  • ****All pulley nuts must be tightened when installing new spindle assemblies****
  • Brand: Cub Cadet Non-Genuine, MTD Non-Genuine,
  • Product Line: Jackshaft assembly, Quill assembly, pulley and spindle assembly, spindle assembly
  • with pulley,
  • Features: For selected 46" cut decks fitted with 6-point star centre hole blades.
  • Standard Pack Quantity: 1
  • Please Note: * Both Cub Cadet LT1046 (model 13AP11CH630*) and MTD Yard-Man (model 13AR604H671*)
  • year 2005 and earlier models used a different spindle assembly.
  • ****All pulley nuts must be tightened when installing new spindle assemblies****
  • Brand: Cub Cadet Non-Genuine, MTD Non-Genuine,
  • Product Line: Jackshaft assembly, Quill assembly, pulley and spindle assembly, spindle assembly
  • with pulley,
