Extended Description

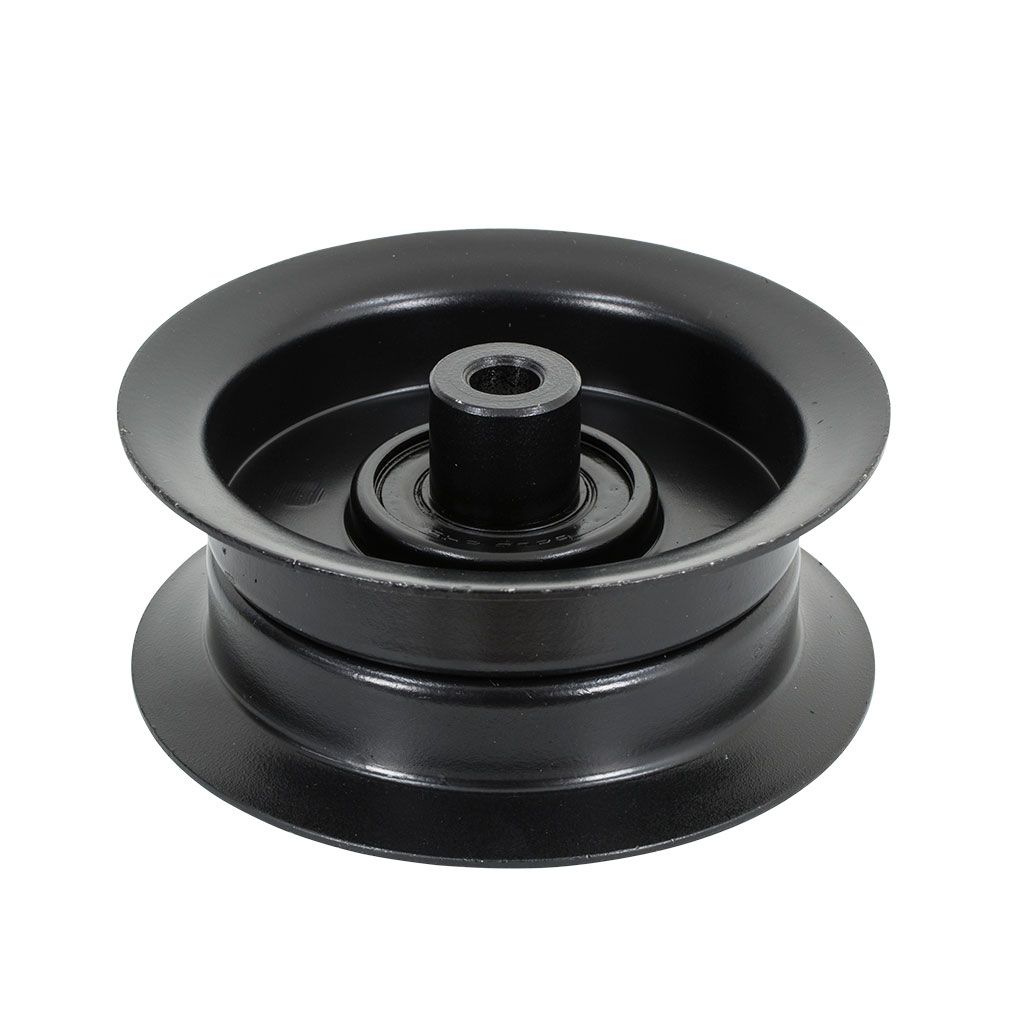

• Description: TORO Deck Idler Pulley
• Replaces OEM: Replaces TORO OEM 88-5630
• Pulley Dimension A: (inches) 4 1/8
• Pulley Dimension A: (mm) 104.77
• Pulley Dimension A: (inches) 4 1/8
• Pulley Dimension A: (mm) 104.77
• Pulley Dimension C: (mm) 9.52
• Pulley Dimension D: (inches) 1 1/2
• Pulley Dimension C: (inches) 3/8
• Pulley Dimension C: (mm) 9.52
• Pulley Dimension D: (inches) 1 1/2
• Pulley Dimension D: (mm) 38.1
• Fits: 34" (863 mm) cut TORO TimeCutter MX 3450* (model 74750 years 2015 - 2016) zero turn
• radius ride-on models as the deck idler pulley, (2 required per unit).
• Fits: 38" (965 mm) cut TORO XL 380H (model 71246 years 2005 - 2007 and model 71252 years
• 2008 - 2010), XLS 380 (model 71254 years 2011 - 2013) ride-on lawn mower models as
• the deck idler pulley, (1 required per unit) and TimeCutter Z, 14-38Z (model 74301
• and 74402 year 2003) zero turn radius ride-on models as the deck idler pulley, (2
• required per unit).
• Fits: 42" (1067 mm) cut TORO XLS 420T (model 71255 years 2011 - 2013) ride-on lawn mower
• models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 16-42Z
• (model 74403 year 2003) zero turn radius ride-on models as the deck idler pulley,
• (2 required per unit).
• Fits: 44" (1118 mm) cut TORO XL series cutter deck (deck model 79107 year 1996 ser #
• 6900001 - 6999999), XL 440H (deck model 79110 years 2005 onwards with ser #
• 250000001 - 310999999) and XL 440H (unit model 71429 year 2005) ride-on lawn mower
• models as the deck idler pulley, (2 required per unit).
• Fits: 34" (863 mm) cut TORO TimeCutter MX 3450* (model 74750 years 2015 - 2016) zero turn
• radius ride-on models as the deck idler pulley, (2 required per unit).
• Fits: 38" (965 mm) cut TORO XL 380H (model 71246 years 2005 - 2007 and model 71252 years
• 2008 - 2010), XLS 380 (model 71254 years 2011 - 2013) ride-on lawn mower models as
• the deck idler pulley, (1 required per unit) and TimeCutter Z, 14-38Z (model 74301
• and 74402 year 2003) zero turn radius ride-on models as the deck idler pulley, (2
• required per unit).
• Fits: 42" (1067 mm) cut TORO XLS 420T (model 71255 years 2011 - 2013) ride-on lawn mower
• models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 16-42Z
• (model 74403 year 2003) zero turn radius ride-on models as the deck idler pulley,
• (2 required per unit).
• Fits: 44" (1118 mm) cut TORO XL series cutter deck (deck model 79107 year 1996 ser #
• 6900001 - 6999999), XL 440H (deck model 79110 years 2005 onwards with ser #
• 250000001 - 310999999) and XL 440H (unit model 71429 year 2005) ride-on lawn mower
• models as the deck idler pulley, (2 required per unit).
• Standard Pack Quantity: 1
• Please Note: For TORO TimeCutter MX3450 models listed above, to complete the idler pulley set
• use with our PUL7430 (replaces OEM 106-2175) deck flat idler pulley x 1.
• Brand: Toro - Non Genuine,
• Product Line: Deck Idler Pulley,
• Standard Pack Quantity: 1
• Please Note: For TORO TimeCutter MX3450 models listed above, to complete the idler pulley set
• use with our PUL7430 (replaces OEM 106-2175) deck flat idler pulley x 1.
• Brand: Toro - Non Genuine,
• Product Line: Deck Idler Pulley,

Copyright © Roy Gripske & Sons Pty. Ltd. 2013~2026. All Rights Reserved.

• Description:
• Non-Genuine
• Toro,
• Steel Flat Idler Pulley


• 2005) ride-on lawn mower models as the deck idler pulley, (2 required per unit).


• Toro

• Fits: 34" (863 mm) cut Toro TimeCutter MX 3450* (model 74750 years 2015 - 2016) zero turn radius ride-on models as the deck idler pulley, (2 required per unit). Also fits 38" (965 mm) cut Toro XL 380H (model 71246 years 2005 - 2007 and model 71252 years 2008 - 2010), XLS 380 (model 71254 years 2011 - 2013) ride-on lawn mower models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 14-38Z (model 74301 and 74402 year 2003) zero turn radius ride-on models as the deck idler pulley, (2 required per unit). Also fits 42" (1067 mm) cut Toro XLS 420T (model 71255 years 2011 - 2013) ride-on lawn mower models as the deck idler pulley, (1 required per unit) and TimeCutter Z, 16-42Z (model 74403 year 2003) zero turn radius ride-on models as the deck idler pulley, (2 required per unit). Also fits 44" (1118 mm) cut Toro XL series cutter deck (deck model 79107 year 1996 ser # 6900001 - 6999999), XL 440H (deck model 79110 years 2005 onwards with ser # 250000001 - 310999999) and XL 440H (unit model
• 71429 year 2005) ride-on lawn mower models as the deck idler pulley, (2 required per unit).

• Replaces OEM: 88-5630

•

• Pulley Dimension "A": 4 1/8", 104.77 mm

• Pulley Dimension "C": 3/8", 9.52 mm

• Pulley Dimension "D": 1 1/2", 38.1 mm

•

• Standard Pack Quantity: 1
